QSW-M1208-8C

$0.00

SKU: QSW-M1208-8C Categories: , Tags: ,

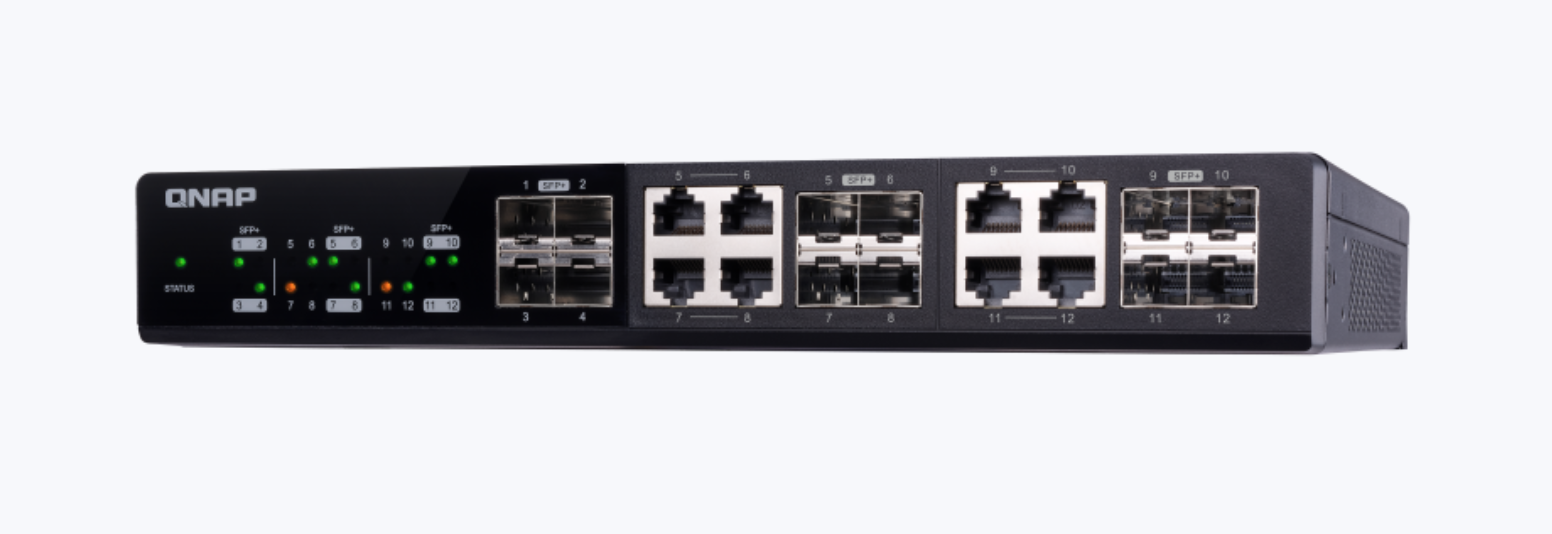

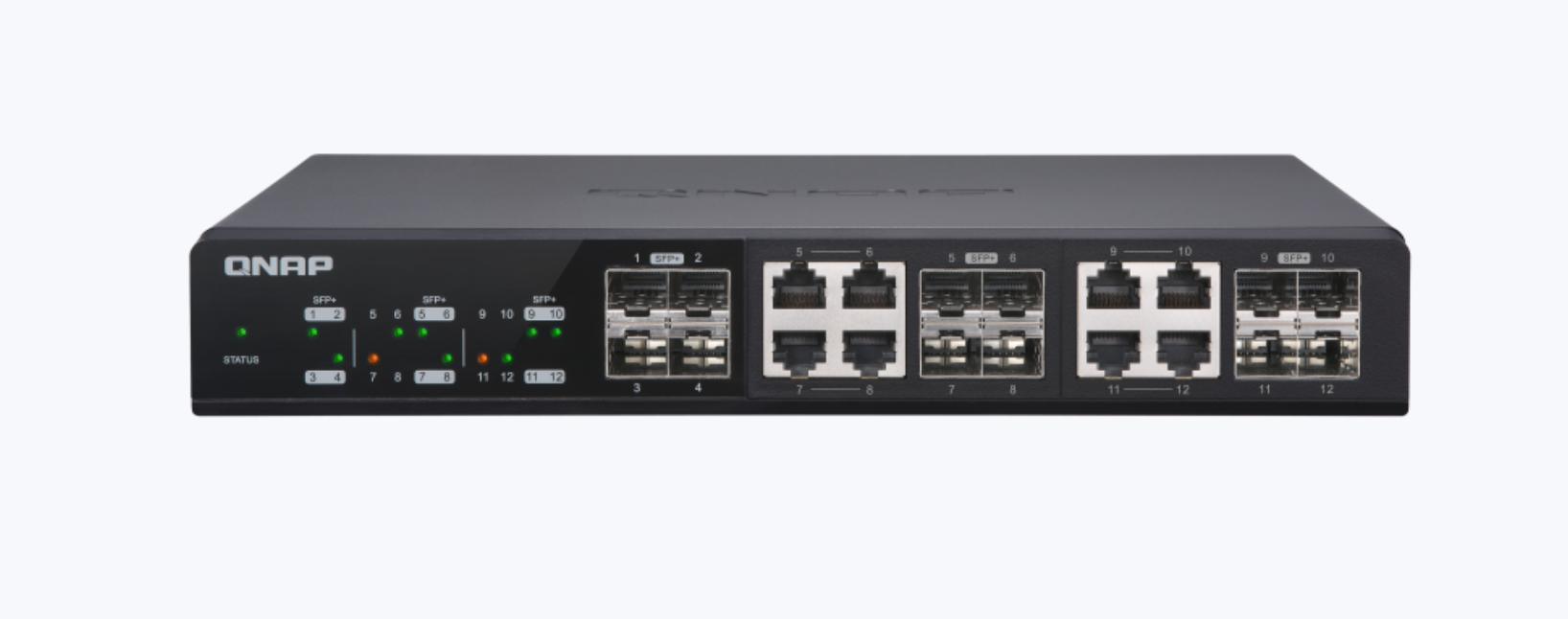

QNAP QSW-M1208-8C
12 Ports 10GbE Layer 2 Managed Switch
Switching Capacity: 240Gbps | Management Type: Web Managed
10GbE LAN Ports: 4 x 10GbE SFP+ Ports + 8 x 10GbE SFP+/RJ45 Combo Ports
10GbE RJ45 Ports support 10GbE/5GbE/2.5GbE/1GbE/100MbE | 10GbE SFP+ Ports support 10GbE/1GbE
Support Rate Limiting, IGMP Snooping, IP/MAC ACL, QoS, Port Mirroring, Trunking/LACP, VLAN, LLDP, WOL, Jumbo frame, etc.
Support IEEE 802.3u/ab/bz/an/ae/z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3p, IEEE 802.3az, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1AB
2 Years Carry-In Warranty (Optional: Upgrade to Onsite Warranty)

Description

Management Type Web Managed
Number of Ports 12
10GbE SFP+ 4
10GbE SFP+/RJ45 Combo Ports 8

Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).

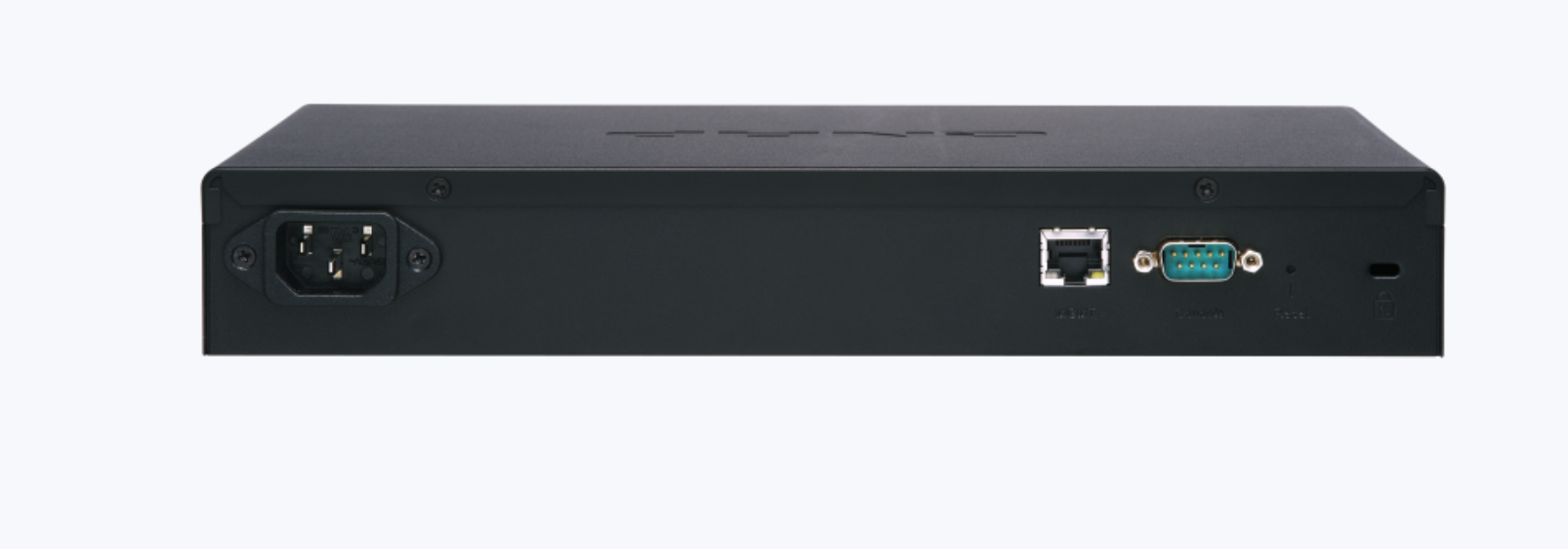

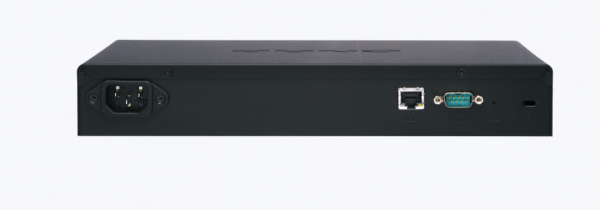

Management Port 1 x 1GbE RJ45
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 70W
Input Power Type AC
Input Voltage Range 100 ‒ 240VAC, 50/60Hz
MAC Address Table 32K
Total Non-Blocking Throughput 120Gbps
Switching Capacity 240Gbps
Management Interface Web
Console RS232
Energy Efficient Ethernet (IEEE 802.3az complaint)

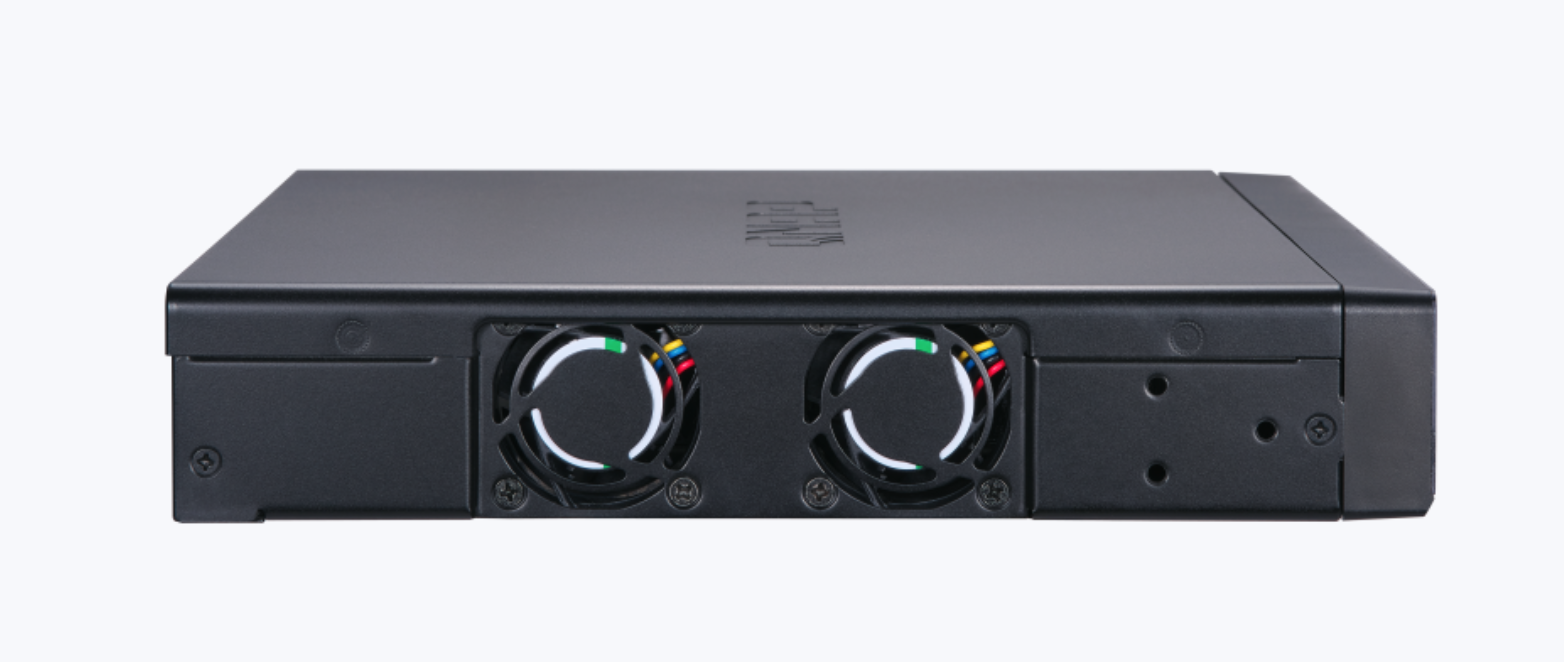

Fan System: 4 x 4 cm (12V)
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
(IEEE 802.1p Class of Service)
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Buttons Reset button
Dimensions (HxWxD) 46.65 x 285 x 236.6 mm
Weight (Net) 2.2 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5%–95% (non-condensing)
Certifications FCC, CE, VCCI, BSMI, RCM, WEEE
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years
