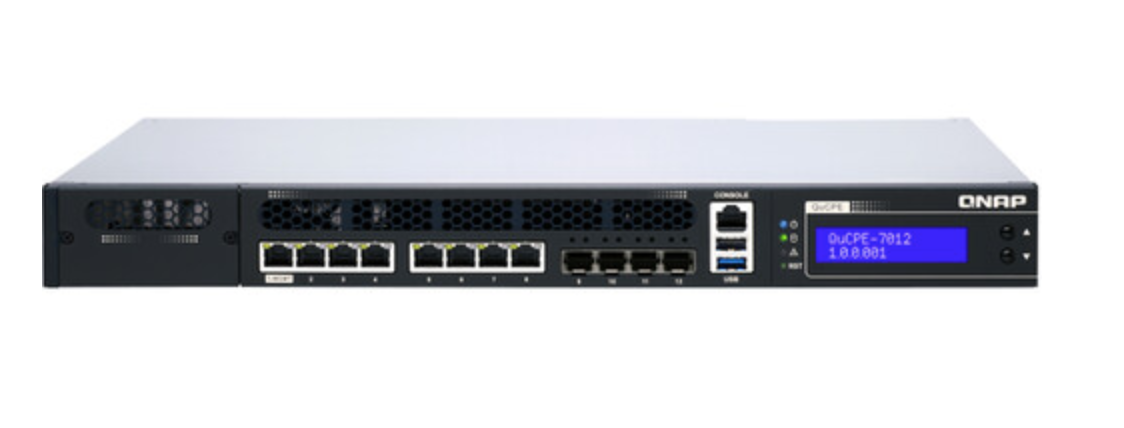

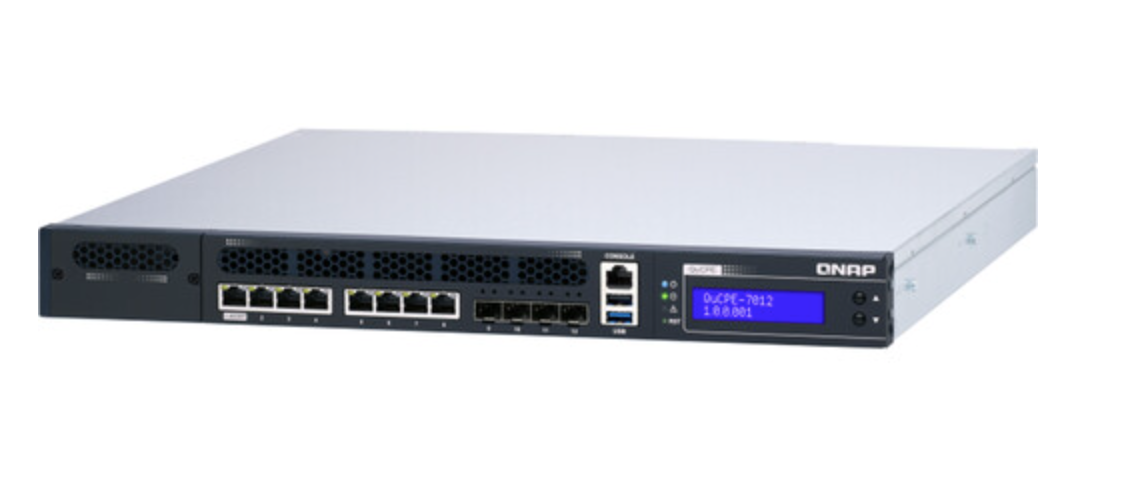

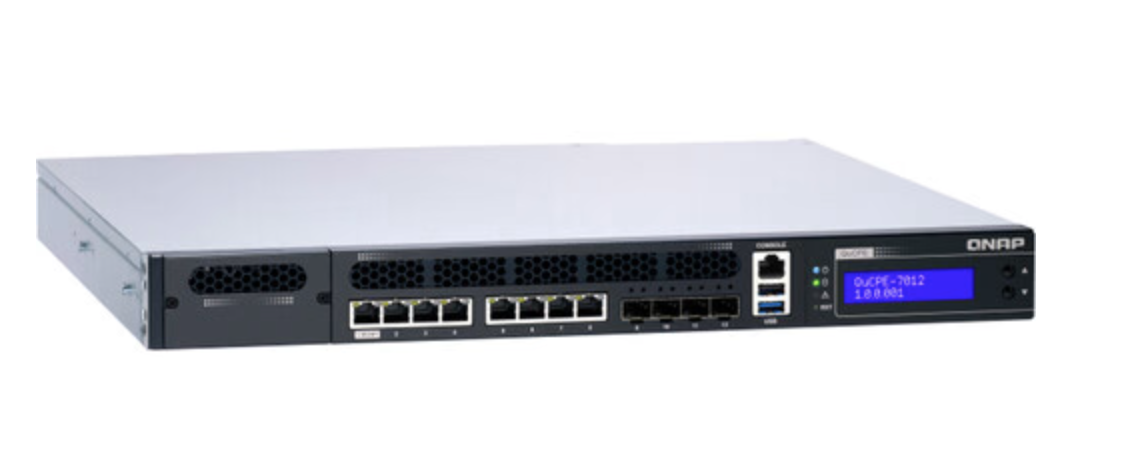

QuCPE-7012-D2166NT-64G

$0.00

SKU: QuCPE-7012-D2166NT-64G Categories: , Tag:

QuCPE-7012-D2166NT-64G (Redundant Power Supply)
Network Virtualization Premise Equipment | 1U Rackmount | Rail-kit: RAIL-B02 (Optional)
CPU: Intel Xeon D-2166NT 2.0GHz 12-Core/24-Thread (burst up to 3.0GHz)
RAM: 64GB (4 x 16GB) UDIMM DDR4 ECC RAM
MAX RAM: 128GB (8 x 16GB UDIMM) / 256GB (8 x 32GB RDIMM) DDR4 ECC RAM
Internal Storage: 2 x 2.5″ SATA 6G
External Ports: 1 x USB3.2 Gen1, 1 x USB2.0
GbE Ports: 8 x 2.5GbE (RJ45) , 4 x 10GbE (SFP+), Optional 10GbE / 25GbE / 40GbE
PCI-E: 1 x PCIe Gen3 x8 | Network Module Slot: 1
OS: QNE Network | Cloud Management: AMIZ Cloud | Application Store: AMIZ Marketplace
Support Intel QAT | Support SR-IOV | Support Intel DPDK
Support Active-Standby High Availability | Support QNAP QuWAN SD-WAN
2 Years Carry-In Warranty (Optional: Upgrade to 5 Years Carry-In / Onsite Warranty)
*****Project Discount Available*****

Description

Specifications

  • CPU – Intel Xeon D-2166NT 12-core/24-thread 2.0GHz processor (16.6M Cache; up to 3.0 GHz)
  • System Memory – 64GB DDR4 2666MHz ECC RDIMM (4 x 16GB)
  • Maximum Memory – 128 GB (UDIMM) or 256GB (RDIMM)
  • Memory Slot – 8 x Long-DIMM DDR4 DDR4 2133/2400MHz slots, up to 128 GB (UDIMM) or 256GB (RDIMM)
  • Drive Bays – 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
  • Total number of built-in and Pre-configured Ports – 12
  • 10GbE SFP+ – 4
  • Network Module Slot – 1
  • PCIe Slot – 1 x PCIe Gen 3 x8
  • Form Factor – Rackmount, 1U
  • Fan – 3 x Cooling fans with smart fan
  • USB 2.0 port – 1
  • USB 3.2 Gen 1 port – 1
  • Power – Redundant power 300W, 90V~264V AC
  • Intel QAT support – Yes
  • SR-IOV supports – Yes
  • Intel DPDK support – Yes
