QSW-1208-8C

$0.00

SKU: QSW-1208-8C Categories: , Tags: ,

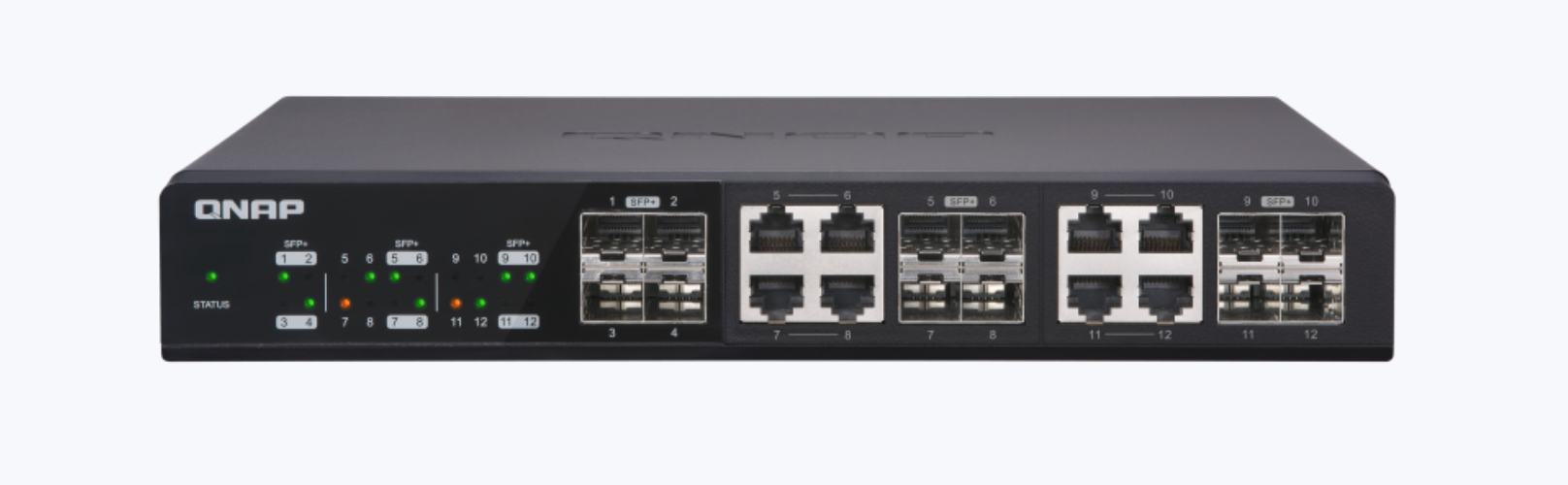

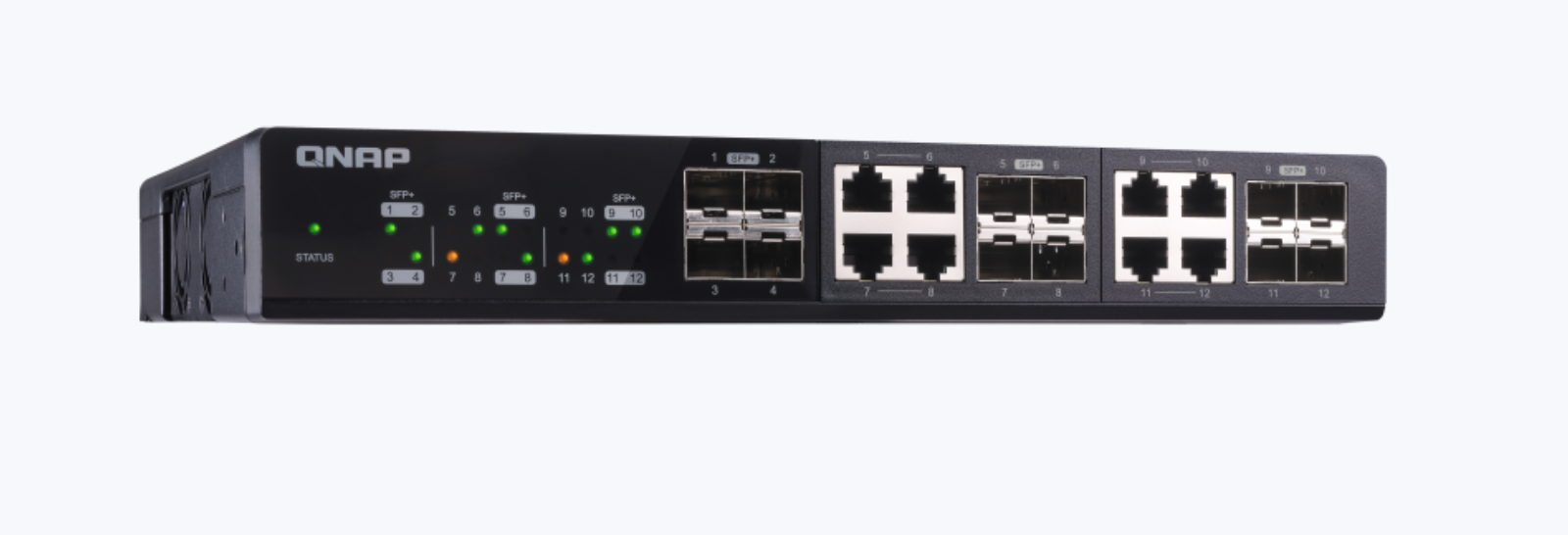

QNAP QSW-1208-8C
12 Ports 10GbE Unmanaged Switch
Switching Capacity: 240Gbps
10GbE LAN Ports: 4 x 10GbE SFP+ Ports + 8 x 10GbE SFP+/RJ45 Combo Ports
10GbE RJ45 Ports support 10GbE/5GbE/2.5GbE/1GbE/100MbE | 10GbE SFP+ Ports support 10GbE/1GbE
2 Years Carry-In Warranty (Optional: Upgrade to Onsite Warranty)

Description

Management Type Unmanaged
Number of Ports 12
10GbE SFP+ 4

10G/1G
10GbE SFP+/RJ45 Combo Ports 8

Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
Power Supply Description Internal Open Frame
Max. Power Consumption 50W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 32K
Total Non-Blocking Throughput 120Gbps
Switching Capacity 240Gbps
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan System: 2 x 4 cm (12V DC)
Supported Standards IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet
IEEE 802.3an 10GBASE-T 10G Ethernet
IEEE 802.3ae 10GBASE-SR
IEEE 802.3ae 10GBASE-LR
IEEE 802.3x Full-duplex flow control
IEEE 802.3az Energy Efficient Ethernet
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Dimensions (HxWxD) 43 × 285 × 233 mm
Weight (Net) 2.15 kg
Weight (Gross) 2.2 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 10% to 85% RH non-condensing
Certifications CE, FCC, VCCI, BSMI RCM, CCC
Electromagnetic Compliance CLASS A, UL62368
Jumbo Frames 9k
Warranty 2 Years
