SKU: TS-i410X-8G Categories: , Tags: ,

4-Bay NAS | Intel Atom x6425E Quad Core, burst up to 3.0GHz
RAM: 8GB DDR4 RAM | 4GB DOM (Dual boot OS protection)
Internal Storage: 4 x 2.5″ SATA 6G | Hotswap

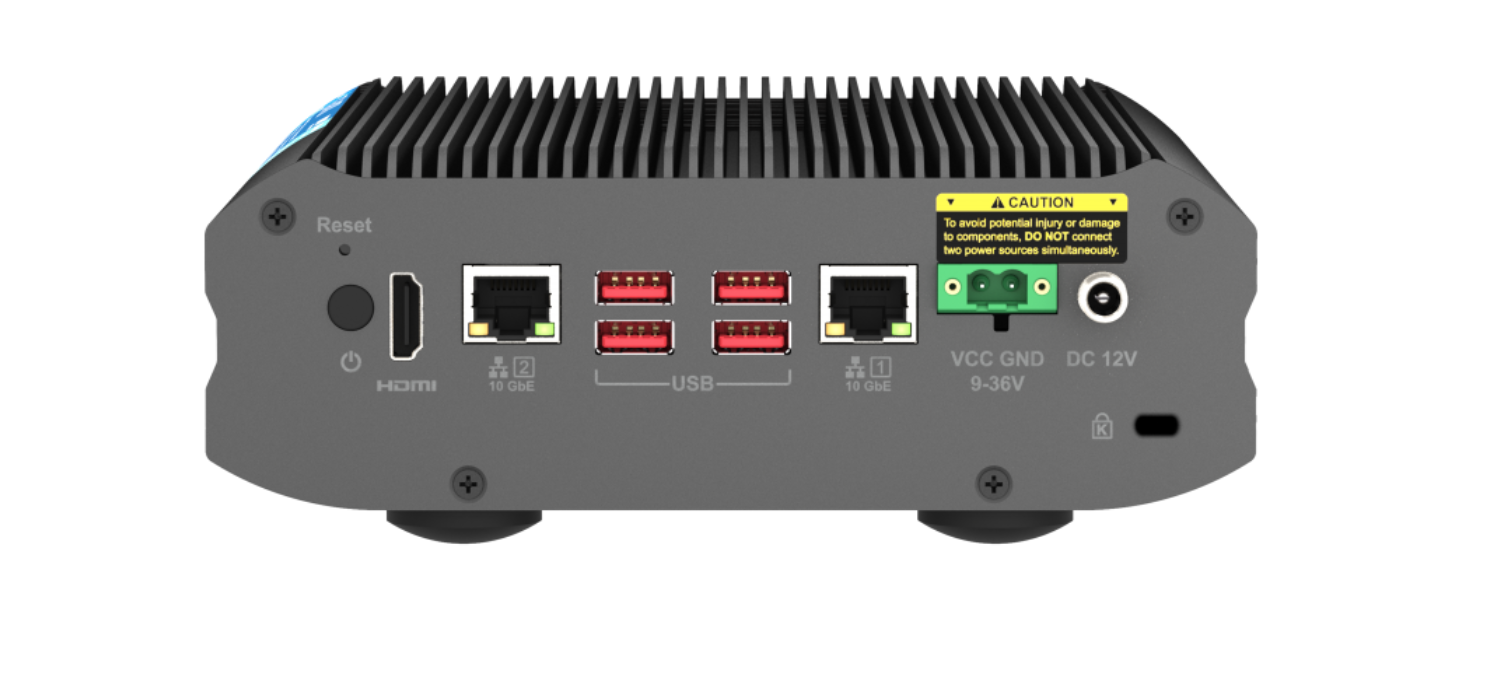

External Ports: 4 x USB3.2 Gen2 (10Gbps, Typc-A), One Touch Copy Button | 1 x HDMI 1.4b
GPU: Intel UHD Graphics, Support 4K H.264 / H.265
GbE Ports: 2 x 10GbE (RJ45)
OS: QTS | File System: EXT4 | RAID Level: RAID 0, 1, 5, 10, JBOD
Expansion Units: 2 x TR DAS / 1 x TL USB JBOD
Surveillance Station: N/A | QVR Elite: 2 x IP Cam Licenses | QVR Pro: 8 x IP Cam Licenses
3 Years Carry-In Warranty (Optional: Upgrade to 5 Years Carry-In / Onsite Warranty)


  • Specifications:

    CPU Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz
    CPU Architecture 64-bit x86
    Graphic Processors Intel® UHD Graphics for 10th Gen Intel® Processors
    Floating Point Unit
    Encryption Engine  (AES-NI)
    Hardware-accelerated Transcoding
    System Memory 8 GB on board (non-expandable)

    Note: Reserves some RAM for use as shared graphics memory.

    Maximum Memory 8 GB on board (non-expandable)
    Flash Memory 4GB (Dual boot OS protection)
    Drive Bay 4 x 2.5-inch SATA 6Gb/s, 3Gb/s

    The system is shipped without HDD.

    Drive Compatibility 2.5-inch SATA solid state drives
    SSD Cache Acceleration Support
    10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/5G/2.5G/1G)
    Wake on LAN (WOL)
    Jumbo Frame
    USB 3.2 Gen 2 (10Gbps) Port 4
    HDMI Output 1, HDMI 1.4b (up to 3840 x 2160 @ 30Hz)

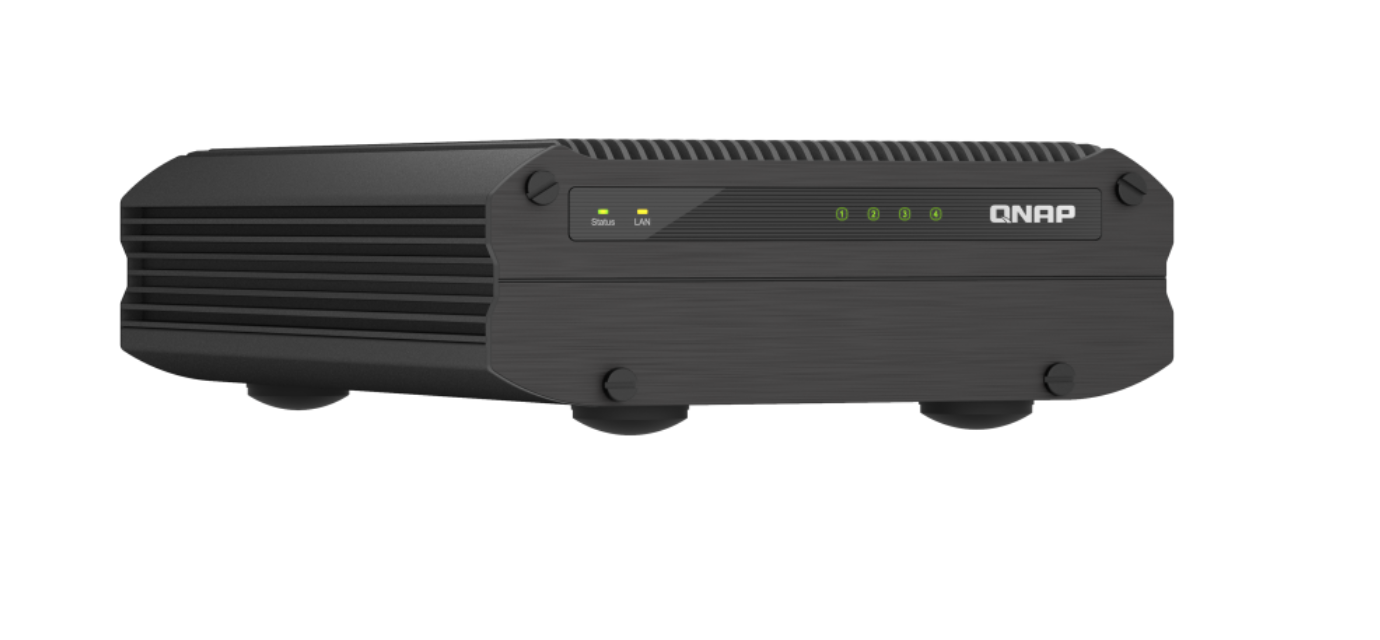

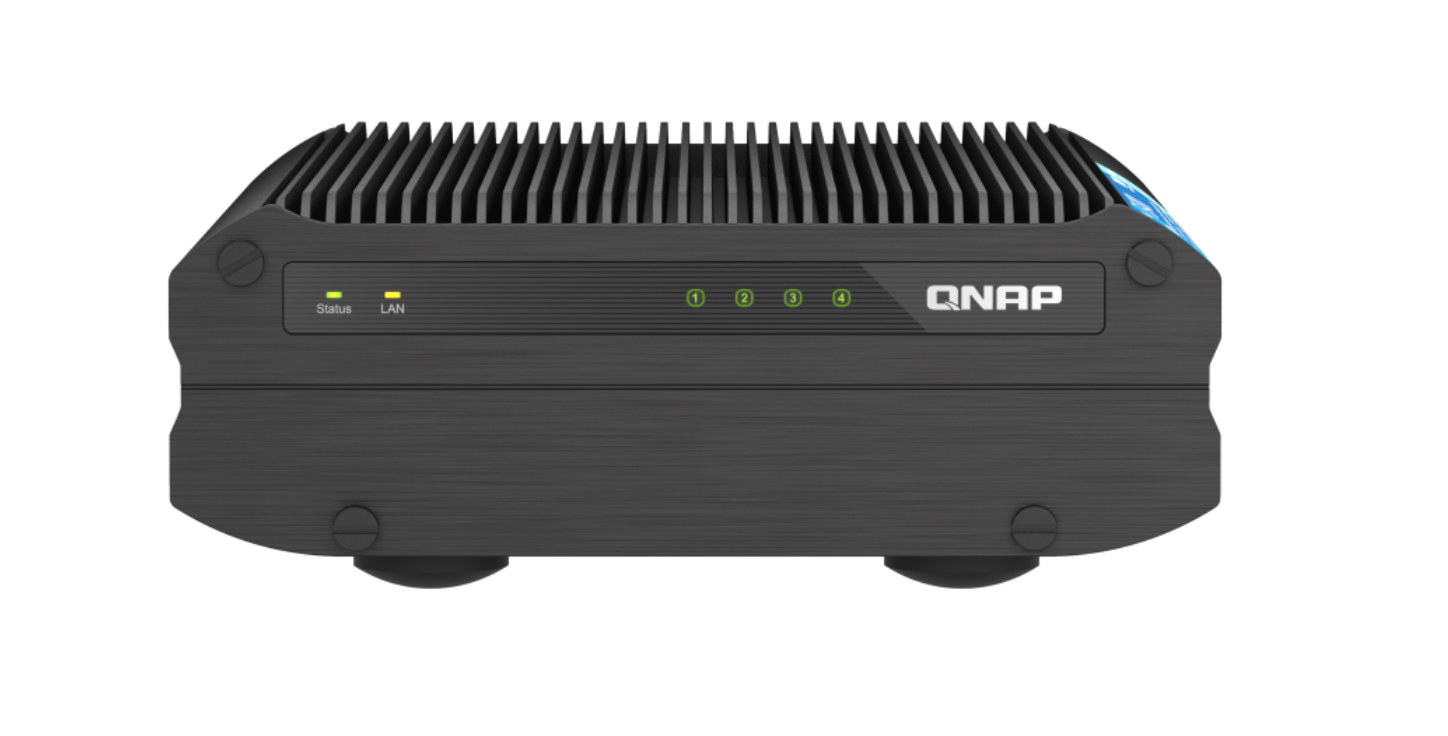

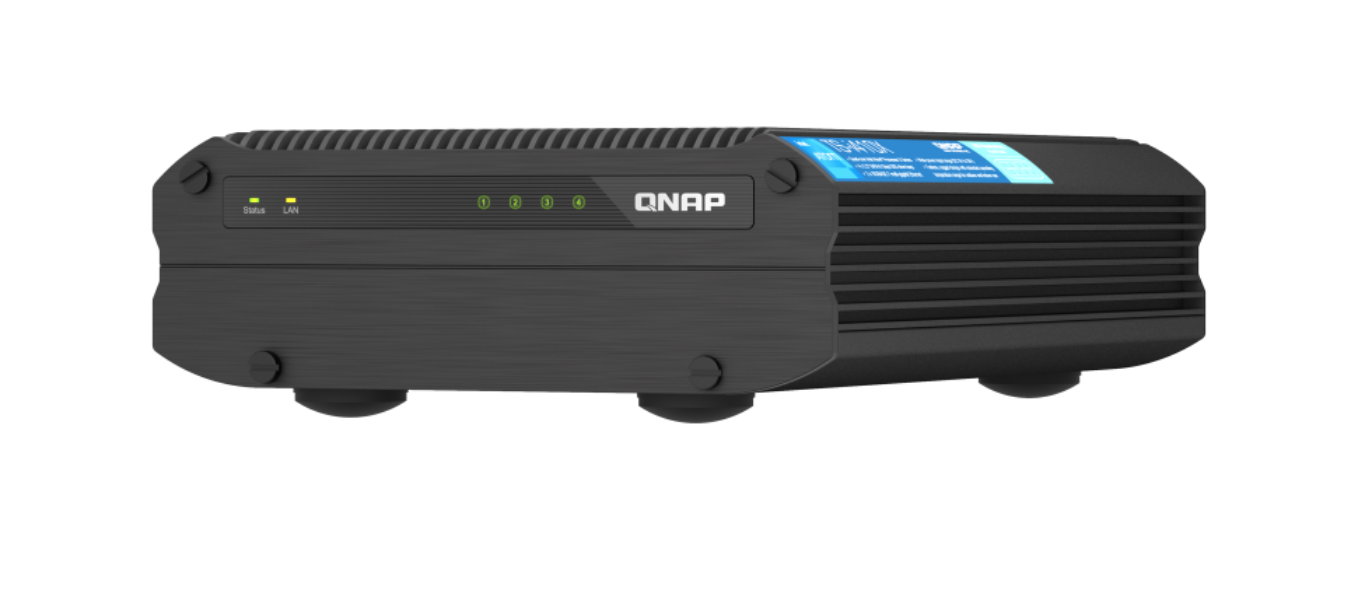

    LED Indicators Power/Status, LAN, SSD 1-4
    Buttons Power, Reset
    Form Factor Tower
    Dimensions (H x W x D) 2.56 × 7.09 × 10 inch
    Weight (Net) 5.6 lbs
    Weight (Gross) 8.22 lbs
    Operating temperature -40 – 70 °C (-40°F – 158°F)
    Storage Temperature -45 – 85°C (-49°F – 185°F)
    Relative Humidity 5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
    Power Supply Unit External Power Adapter, 90W and above, AC 100-240V
    9-36V DC input

    To avoid potential personal injury or component damage, DO NOT plug in two power inputs simultaneously.

    System Warning Buzzer
    Kensington Security Slot
    Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500
