TVS-h474-PT-8G (NEW)

$0.00

SKU: TVS-h474-PT-8G (NEW) Categories: , Tag:

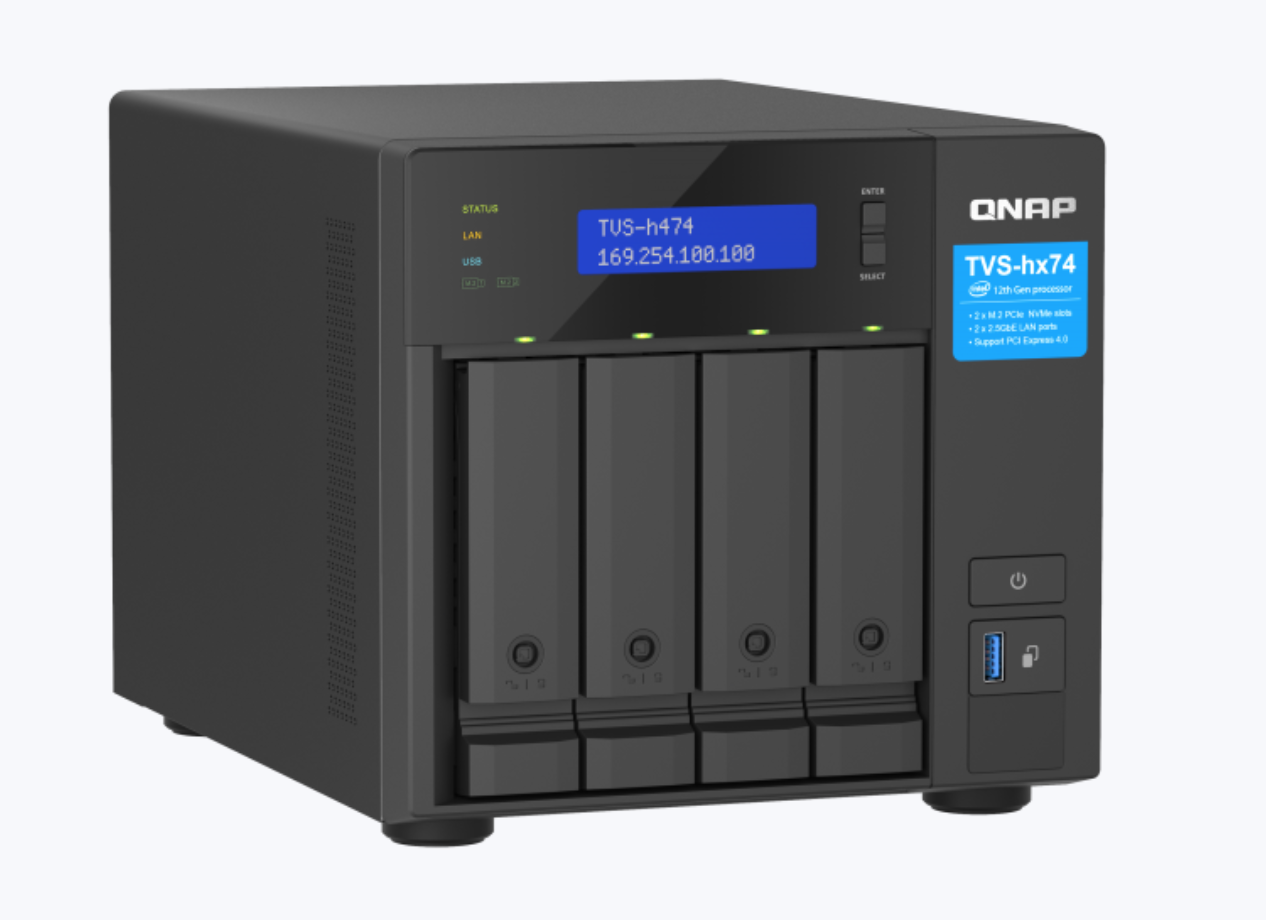

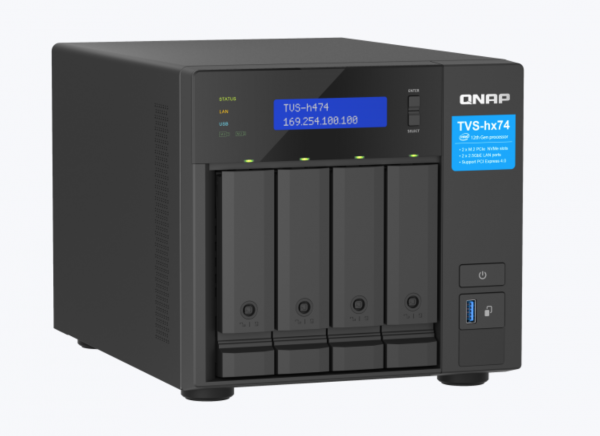

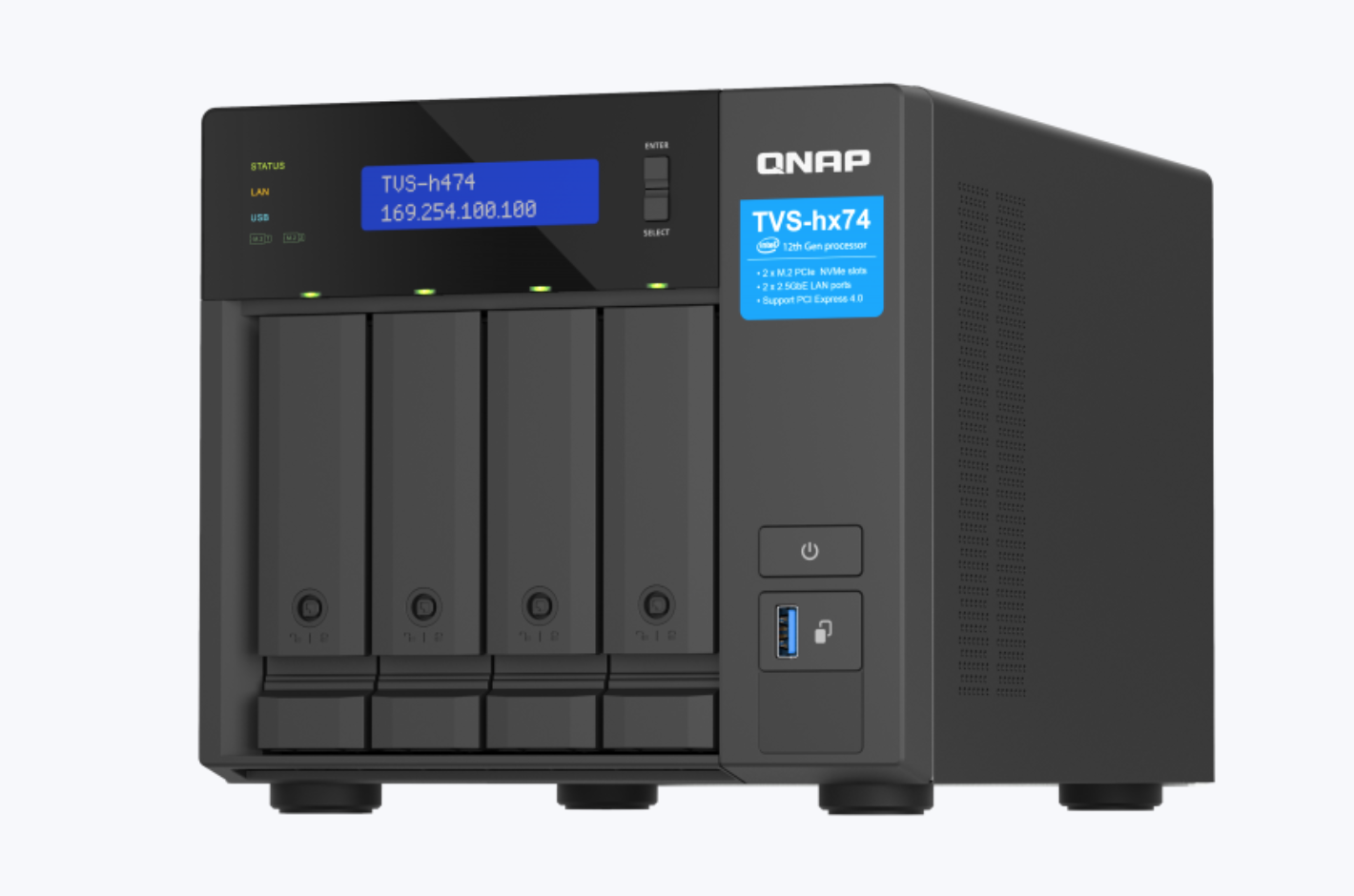

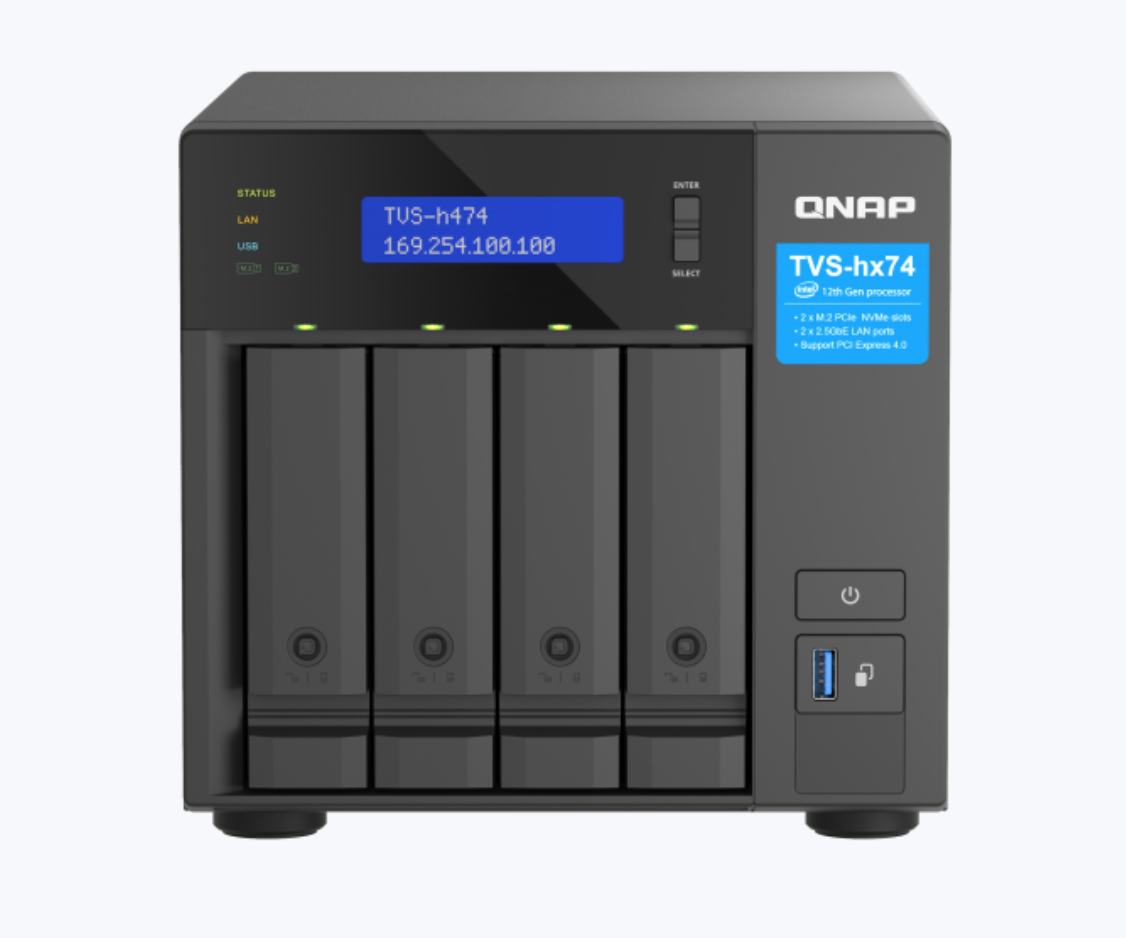

TVS-h474-PT-8G
4-Bay NAS | Intel Pentium Gold G7400 3.7GHz 2-Core / 4-Thread
RAM: 8GB DDR4 RAM (1 x 8GB) | MAX RAM: 128GB DDR4 RAM (2 x 64GB) | 5GB DOM (Dual boot OS protection)
Internal Storage: 4 x 3.5″ / 2.5″ SATA 6G | Hotswap | 2 x M.2 2280 NVMe (Gen3 x2) Slots
External Ports: 1 x USB 3.2 Gen2 (10 Gbps) Type-C, 2 x USB 3.2 Gen2 (10 Gbps) Type-A, One Touch Copy Button | 1 x HDMI 1.4b
GPU: Intel UHD Graphics 710, Support 4K H264 / H265 | Dedicated GPU applicable for QTS Apps / VM
IR Sensor: Built-In | IR Remote: RM-IR004 (Optional)
GbE Ports: 2 x 2.5GbE (RJ45), Optional 10/25/40GbE
PCI-E Slots: 1 x PCIe Gen4 x16 Slot, 1 x PCIe Gen3 x2 Slot
PCI-E Support: QM2 Card / 10G/25G LAN Card / Fibre Channel Card / Dedicated GPU
OS: QTS / QuTS hero (Pre-Installed)
File System: EXT4 (QTS) / ZFS (QuTS hero), Support Inline Data Deduplication, Compression, Compaction, WORM
RAID Level: RAID 0, 1, 5, 6, 10, 50, 60, TP(QuTS hero), TM(QuTS hero), JBOD | Support QTier™ Auto Tiering (QTS)
Surveillance Station: N/A | QVR Elite: 2 x IP Cam Licenses | QVR Pro: 8 x IP Cam Licenses (QTS)
VMware Ready | Hyper-V Ready | Citrix Ready
2 Years Carry-In Warranty (Optional: Upgrade to 5 Years Carry-In / Onsite Warranty)

Description

CPU Intel® Pentium® Gold G7400 2-core/4-thread 3.7 GHz Processor
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics 710
Floating Point Unit
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 128 GB ( 2 x 64 GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen3 x2 slots
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 4 x16
Slot 2: PCIe Gen 3 x2
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
HDMI Output 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz)
Form Factor Tower
LED Indicators HDD 1-4, Status, LAN, USB port, M.2 port
LCD Display/ Button
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 188.2 × 199.3 × 279.6 mm
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V
Power Consumption: HDD Sleep Mode 34.906 W
Power Consumption: Operating Mode, Typical 78.574 W

Tested fully populated with WD10EFRX hard drives.
Fan System fan: 1 x 120mm, 12VDC
CPU fan: 1 x 60mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 700
