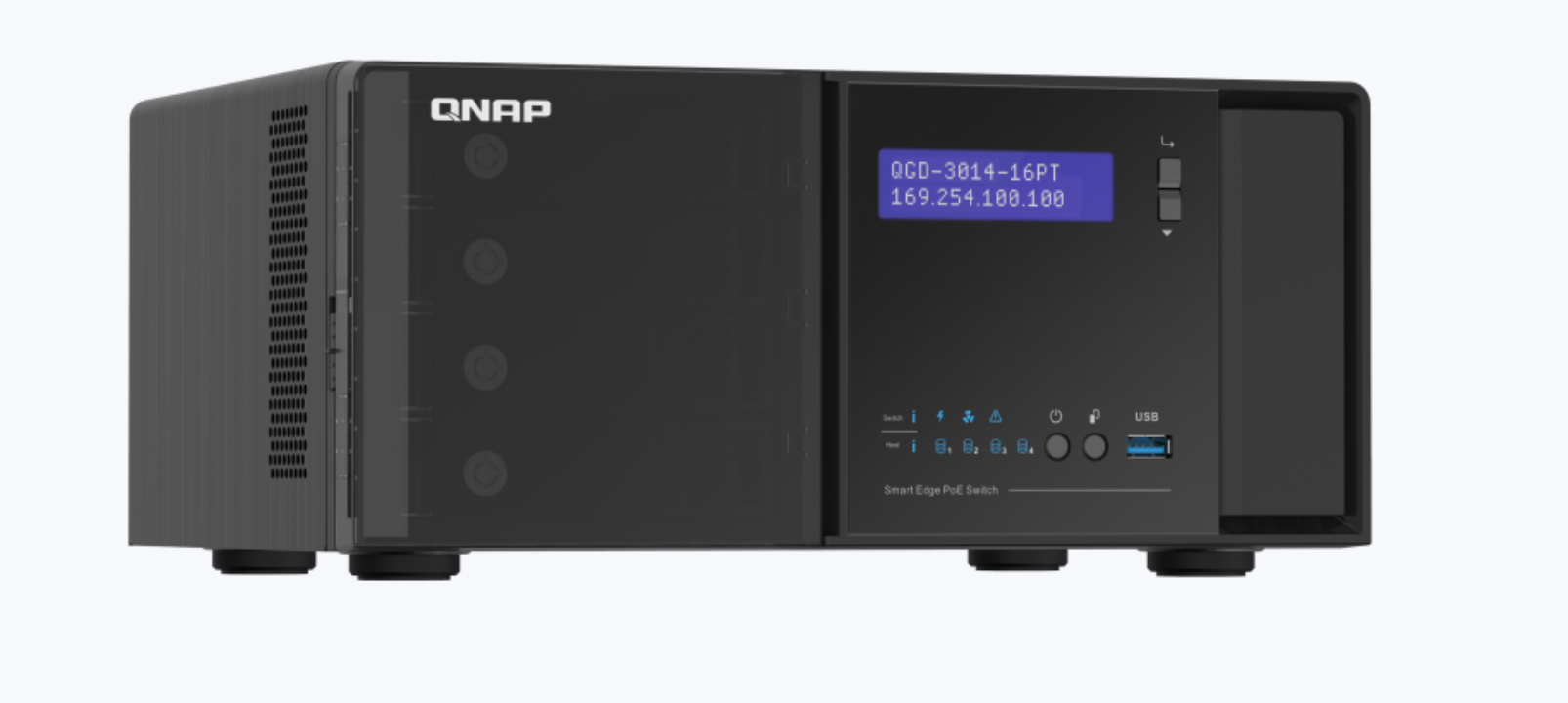

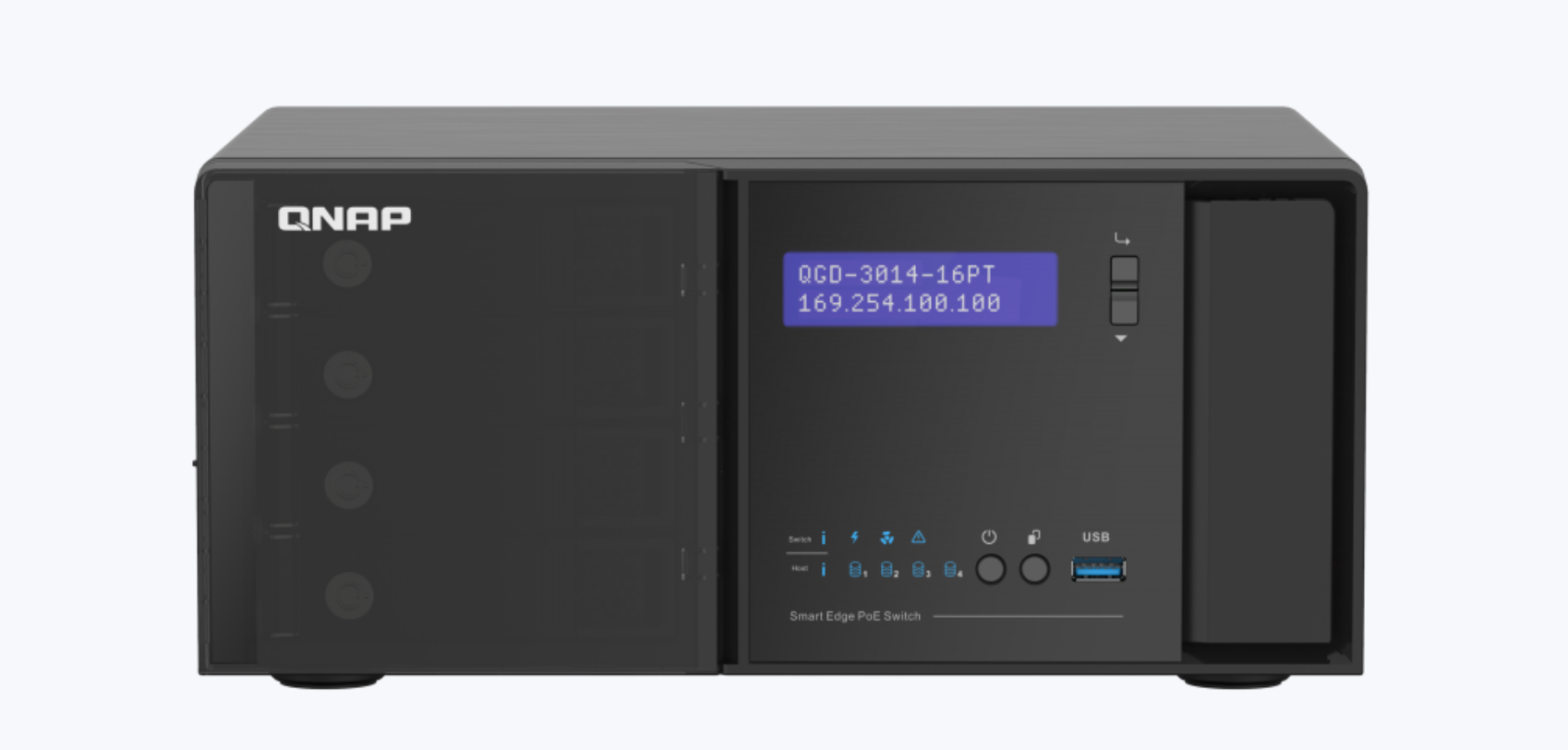

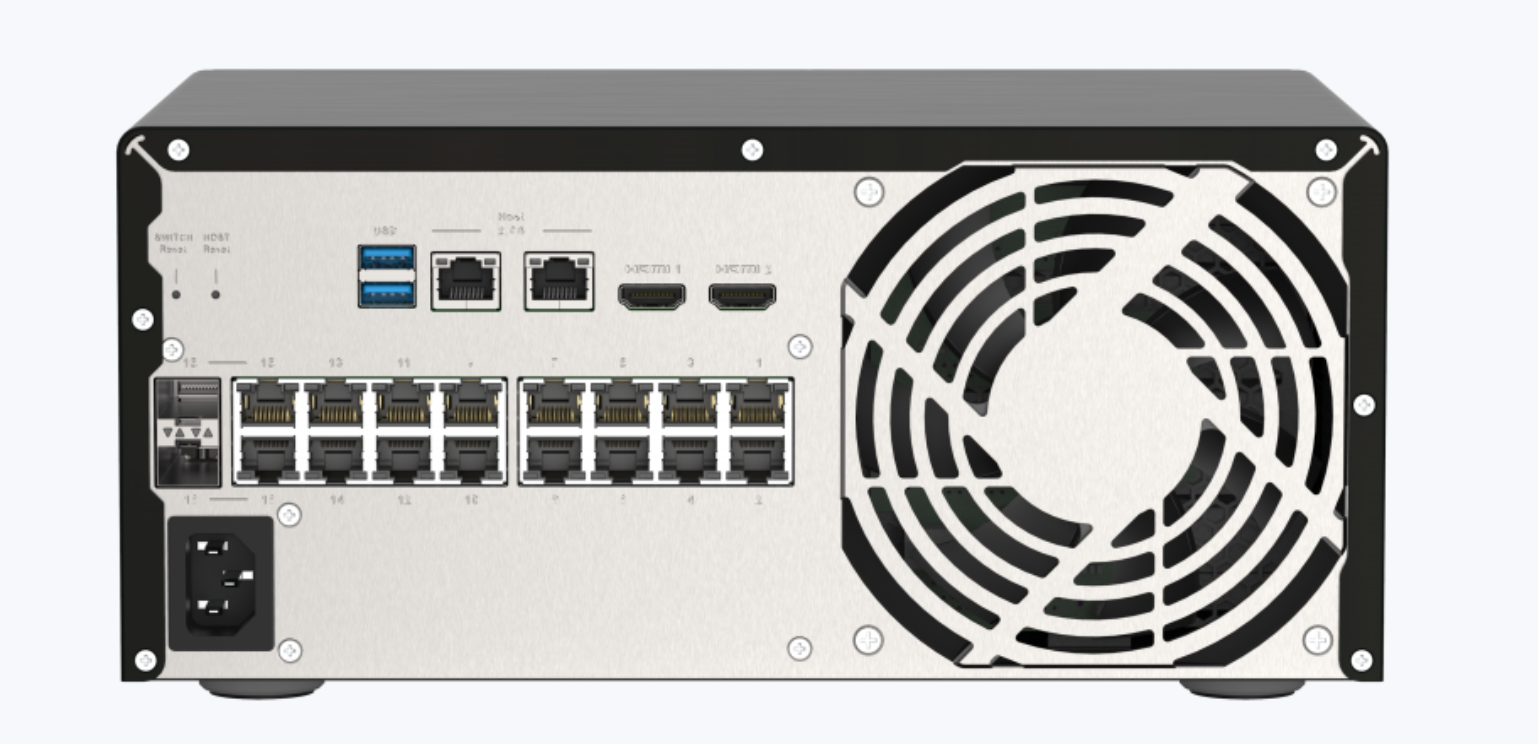

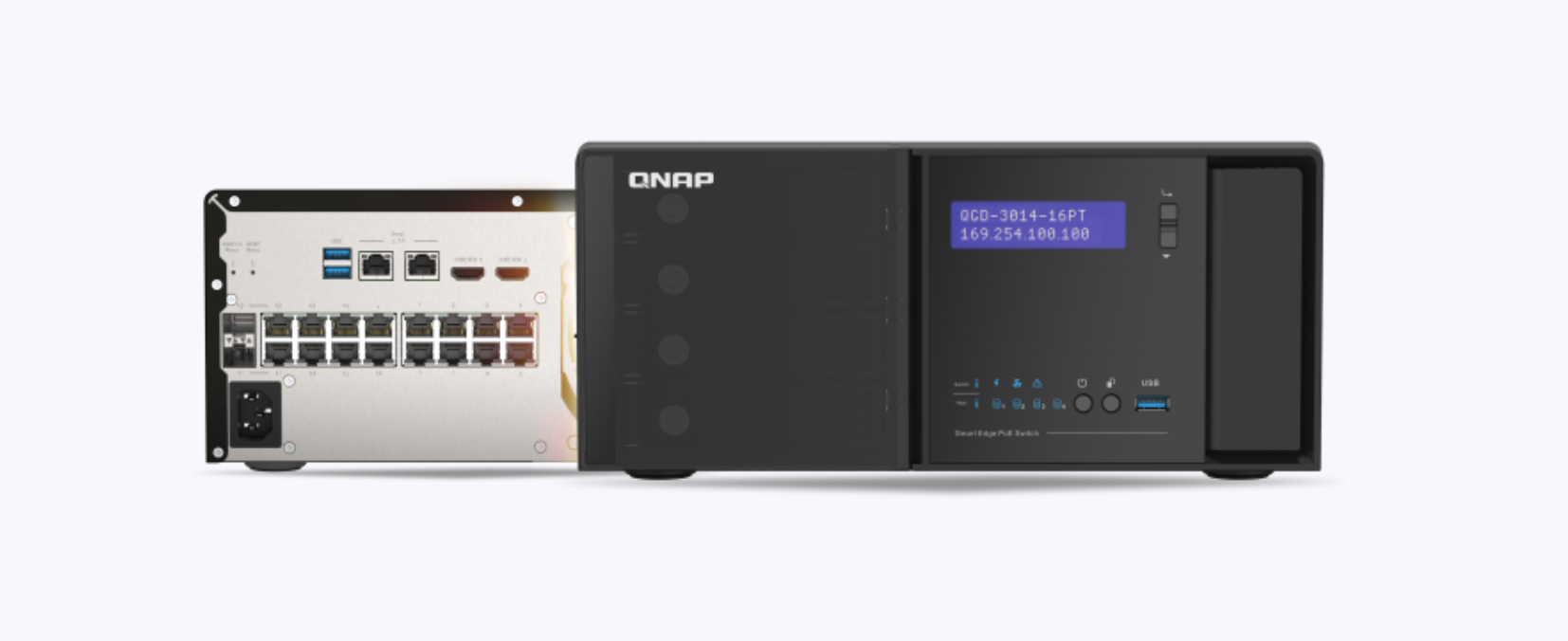

QGD-3014-16PT-8G

$0.00

SKU: QGD-3014-16PT-8G Categories: , Tags: ,
  • QGD-3014-16PT
    16 Port 1G PoE Smart Managed Switch + 4-Bay NAS
    ————————————————————-
    PoE Power Output: Ports 1-16 (30W), including 2 x 1GbE SFP/RJ45 Combo Ports
    Total PoE Power Budget: 140W
    Switching Capacity: 32Gbps
    Management Type: Web Managed
    Support Rate Limiting, IGMP Snooping,IP/MAC ACL, QoS, Port Mirroring, Trunking/LACP, VLAN, LLDP, WOL, Jumbo frame, etc.
    Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.3q, IEEE 802.3p, IEEE 802.3az
    ————————————————————-
    CPU: Intel Celeron J4125 2.0GHz Quad Core (burst up to 2.70GHz)
    GPU: Intel UHD Graphics 600, Support 4K H264 / H265
    RAM: 8GB DDR4 RAM (2 x 8GB) | 4GB DOM
    Internal Storage: 4 x 3.5″ SATA 6G | 2 x M.2 (SATA) Slots
    External Ports: 3 x USB3.2 Gen1 | 2 x HDMI 2.0
    GbE Ports: 2 x 2.5GbE (RJ45), 2 x 1GbE internal link to switch module
    OS: QTS | File System: EXT4 | RAID Level: RAID 0, 1, 5, 6, 10, 50, 60, JBOD | Support QTier™ Auto Tiering
    Expansion Units: 2 x TR units / 1 x TL units
    QVR Pro: 8 x IP Cam Licenses
    2 Years Carry-In Warranty (Optional: Upgrade to 5 Years Carry-In / Onsite Warranty)

Description

Management Type Web Managed
Number of Ports 16
1GbE (RJ45) 14
1GbE SFP/RJ45 Combo Ports 2
Total PoE Ports 16
PoE PSE (802.3af, 15.4W) Ports 1-16
PoE+ PSE (802.3at, 30W) Ports 1-16
PoE Power Output Ports 1-16 (Max 30W)
Total PoE Power Budget 140W
USB 3.2 Gen 1 port 3
Management Port 2 x 2.5GbE
HDMI Output 2
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 250W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 8K
Total Non-Blocking Throughput 16Gbps
Switching Capacity 32Gbps
Management Interface Web
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan System: 12 x 12 cm (12V DC)
Supported Standards IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.3af/at Power-over-Ethernet (PoE)
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3af/at Power-over-Ethernet (PoE)
Form Factor Desktop
LED Indicators Per Port: Link/Activity/Speed/PoE
Per System: Warning/PoE/Fan
LCD Management
Buttons Device PSU power button
Host power button
Host reset button(load default)
Switch reset button
Dimensions (HxWxD) 130 × 295 × 224.8 mm
Weight (Net) 4.08 kg
Weight (Gross) 5.34 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F)
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames
QTS Built-in
CPU Intel Celeron ® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz)
CPU Architecture 64-bit x86
Internal Network Bandwidth 2 x 1GbE
Graphics Processors Intel® HD Graphics 600
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 8 GB (2 x 4 GB)
Maximum Memory 8 GB
Memory Slot 2 x SODIMM DDR4
Flash Memory 4GB (Dual boot OS protection)
Drive Bays 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives
3.5-inch bays:
3.5-inch solid-state drives
3.5-inch hard disk drives
Hot-swappable
M.2 SSD Slots 2 (M.2 SATA 2280)
SSD Cache Acceleration Support
File System: Internal Hard Drive EXT4
File System: External Hard Drive EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
Warranty 2 Years
