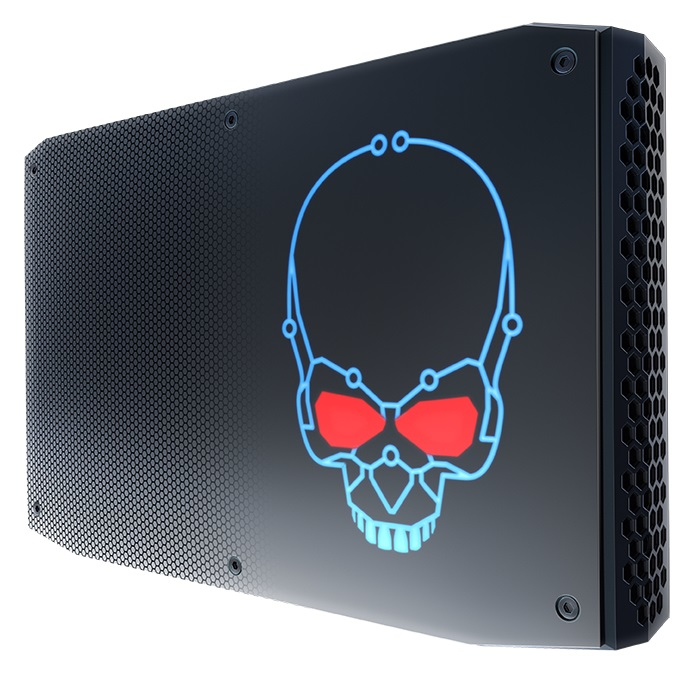

Intel NUC Kit BOXNUC8I7HNK3

$0.00

SKU: BOXNUC8I7HNK3 Categories: , ,
Dimenion Storage Support CPU Max. Memory Support No. of Slot Memory Bus Graphic Display Output USB 2.0 (ext + int) USB 3.0 (ext + int) Audio Networking Power adapter Warranty
•221 mm × 142 mm × 39 mm • 2 x M2 SSD card (22×42 or 22×80) for SATA3 or PCIe x4 Gen3 NVMe or AHCI SSD
• Raid 0, 1 capable		 CORE I7-8705G 32GB 2 DDR4-2400+ 1.2V SO-DIMM Radeon™ RX Vega M GL graphics • 2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a 0+2 1F, 4R, 2i •7.1 digital; L+R+mic (F); L+R+TOSLINK (R) • Intel Gigabit Lan
• Intel® Wireless-AC 8265 + Bluetooth 4.2		 • VESA* mount plate included
• 19V, 230W power adapter with replaceable AC cord		 3 years

Description

關鍵元件

補充資訊

  • 提供嵌入式選項 #否
  • 資料表立即檢視
  • 描述Other features: Includes 2x Thunderbolt 3 (40Gbps) via rear USB-C ports, SDXC card slot and front USB-A and USB-C ports w/ USB 3.1 Gen 2

處理器顯示晶片

  • 整合式繪圖 ‡是
  • 繪圖輸出2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a
  • 支援的顯示器數量 ‡6
  • 獨立顯示卡Radeon™ RX Vega M GL graphics

擴充選擇

I/O 規格

  • USB 連接埠數量13
  • USB 配置F: USB3, 2x USB 3.1g2 (Type A and C); R: 4x USB3, 2x Thunderbolt3 (USB3.1g2); INT: 2x USB2, 2x USB3
  • USB 修訂版2.0, 3.0, 3.1 Gen2
  • USB 2.0 配置 (外部 + 內部)0 + 2
  • USB 3.0 配置 (外部 + 內部)1F, 4R, 2i
  • SATA 連接埠總數2
  • SATA 6.0 Gb/s 連接埠數量上限2
  • RAID 配置2x M.2 SATA/PCIe SSD (RAID-0 RAID-1)
  • 音效 (後方聲道 + 前方聲道)7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
  • 整合式區域網路Intel® Ethernet Connection i219-LM and i210-AT
  • 整合式無線網路‡Intel® Wireless-AC 8265 + Bluetooth 4.2
  • 整合式藍牙是
  • 消費性紅外線接收感測器 #是
  • S/PDIF 輸出連接器TOSLINK
  • 其他接頭CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL
  • # 的 Thunderbolt™ 3 連接埠2x Thunderbolt™ 3

封裝規格

  • 機殼尺寸221 x 142 x 39mm

安全性與可靠性

Additional information

Dimensions 221 × 142 × 39 cm
