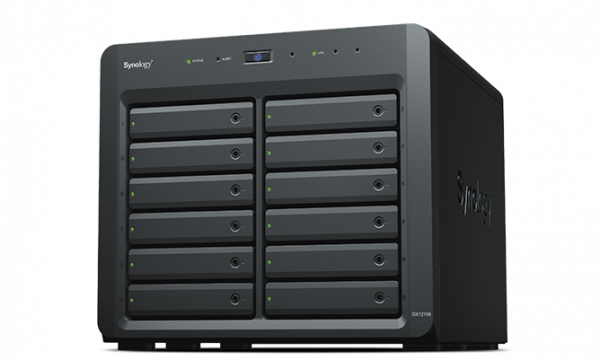

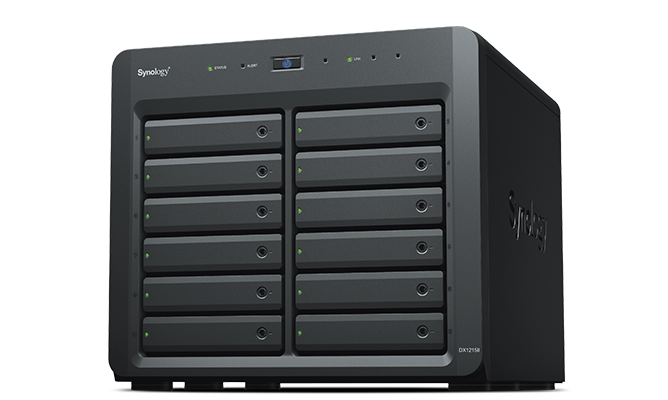

Expansion Unit DX1215II

$0.00

SKU: HD-DX12152 Categories: , , Tags: , ,
DX1215II
12-Bay Expansion / 1 x Expansion Port / 5 Years Warranty
Supported Models
FS1018, DS3617xs, DS3615xs, DS3612xs, DS3611xs, DS2419+, DS2415+, DS2413+, DS2411+, DS2015xs

Description

Hardware Specifications

Applied Models

Supports creating volumes across different units
  • FS series:FS1018
  • 19 series:DS2419+, DS2419+II
  • 18 series:DS3018xs
  • 17 series:DS3617xs, DS3617xsII
  • 15 series:DS3615xs, DS2415+, DS2015xs
  • 13 series:DS2413+
  • 12 series:DS3612xs
  • 11 series:DS3611xs, DS2411+
Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

Drive Bays 12
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM
Notes It is strongly recommended that you only install drives listed on your device’s compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.

External Ports

Expansion Port 1

Appearance

Size (Height x Width x Depth) 270 mm x 300 mm x 340 mm
Weight 9.02 kg

Power

Power Recovery Synchronized with the Synology DiskStation
Power Supply Unit / Adapter 550 W
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 51.23 W (Access)
21.71 W (HDD Hibernation)
British Thermal Unit 174.69 BTU/hr (Access)
74.03 BTU/hr (HDD Hibernation)
Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Temperature

Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Others

System Fan 120 mm x 120 mm x 2 pcs
Easy Replacement System Fan
Noise Level* 27.2 dB(A)
Notes Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Certification

  • FCC
  • CE
  • BSMI
  • EAC
  • RCM
  • KC

Warranty

5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment & Packaging

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • User’s Guide X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Expansion Cable: Infiniband X 1

Optional Accessories

Additional information

Weight 9.02 kg
Dimensions 270 × 300 × 340 cm
