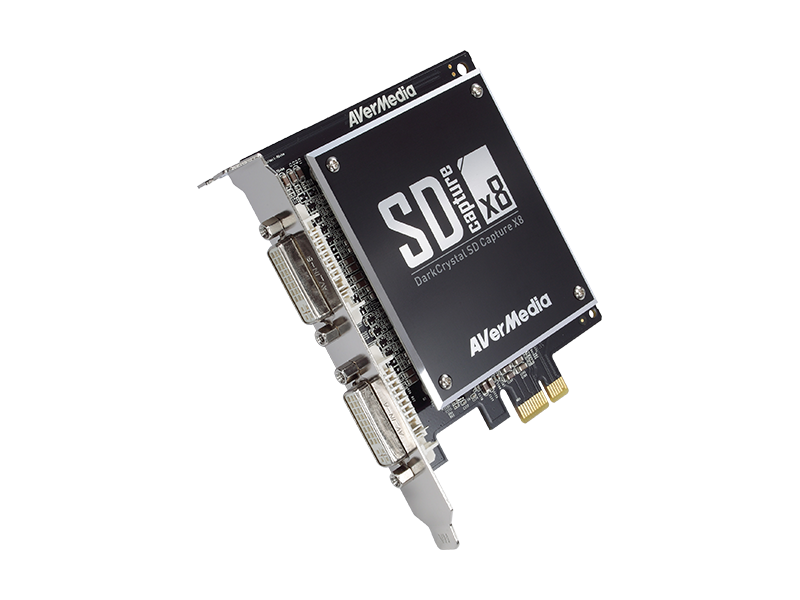

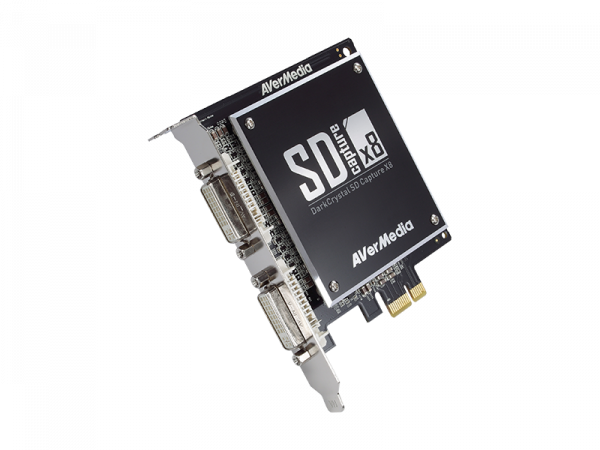

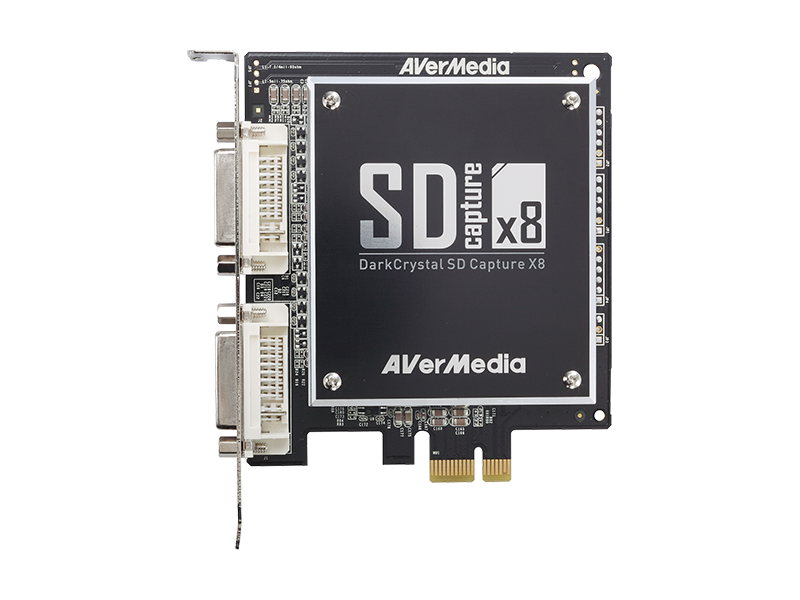

AVerMedia DarkCrystal SD Capture x8/x4 C968


SKU: C968 Categories: , Tags: ,
Multi-channel Concurrent Capture Solution (8-Channel)
Up to 8 channels simultaneous video captures imultaneously
Input: Composite (RCA), Stereo (RCA)
Digitize video from analog signals
DirectShow & third-party software compatibility
Comprehensive SDK included


Interface PCIe 1x Gen2
Input Composite (through RCA/BNC breakout cable)
Stereo (L/R) (through RCA/BNC breakout cable)
Video Resolution 720 x 480i, 720 x 576i
Pixel Format YUY2 (4:2:2)
Color Adjustment Brightness, Contrast, Hue (NTSC only), Saturation
Multi-Card Support Yes (up to 4 pcs for DarkCrystal SD Capture x8, up to 8 pcs for DarkCrystal SD Capture x4)
Programming Language VC/VC++, VB, Delphi, C#(.net), VB.NET
SDK Framework General DLL
Operating Environment Temperature: 0 to +55 ℃
Humidity: 0 to 90% RHNC
Storage Environment Temperature: -30 to +65 ℃
Humidity: 0 to 90% RHNC
Power Requirement 12V max 170mA
3.3V max 340mA
Dimensions (L x W) 106.5 x 90.3mm
System Requirements
CPU -Intel® Pentium® 4 3.0 GHz
-AMD Athlon™ 64 3200+
Memory 512 MB RAM
VGA VGA card with support for DirectX9.0c or above
Sound Card Yes
Supported OS Windows 7/8.1/10 (32/64 bits), Linux (32/64 bits)*


Additional information

Dimensions 10.65 × 9.03 cm
