Description
Computer Connections | 2 |
Port Selection | Hotkey, Pushbutton, Mouse, RS-232 Commands |
Connectors | |

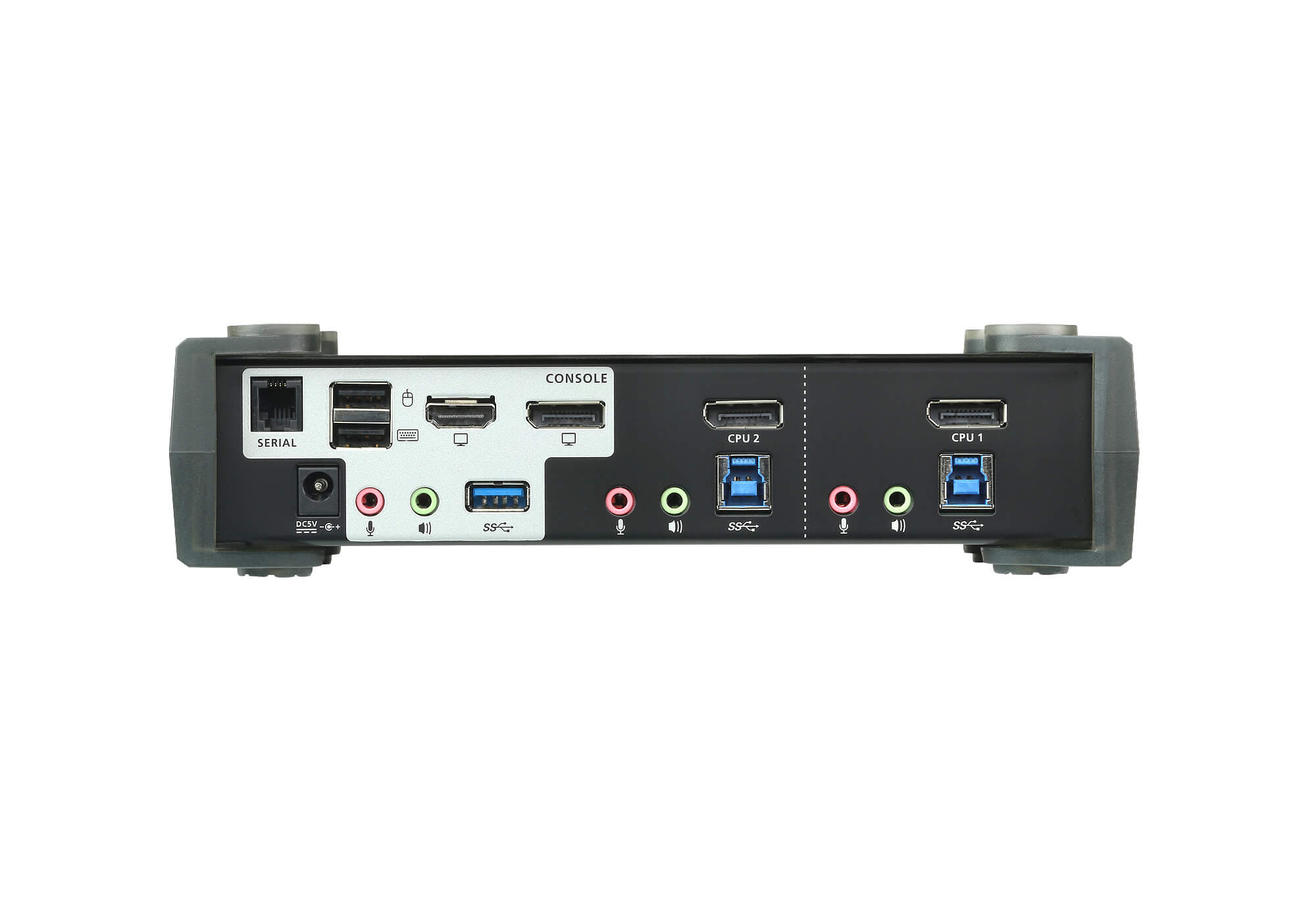

Console Ports | 2 x USB Type A Female 1 x DisplayPort Female (Black) 1 x HDMI Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) 1 x RJ-11 Female |
KVM (Computer) Ports | 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |
Power | 1 x DC Jack |
USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel) |
Switches | |
Selected | 2 x Pushbutton |
LEDs | |
On Line /Selected | 2 (Orange) |
USB Link | 2 (Green) |
Emulation | |
Keyboard / Mouse | USB |
Video | 4096 x 2160 @ 60Hz |
Scan Interval | 1-99 seconds (Default: 5 seconds) |
Power Consumption | DC5V:4.09W:62BTU |
Environmental | |
Operating Temperature | 0-50°C |
Storage Temperature | -20-60°C |
Humidity | 0-80% RH, Non-condensing |
Physical Properties | |
Housing | Metal, Plastic |
Weight | 0.73 kg ( 1.61 lb ) |
Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.) |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
