Description
| Connectors | |

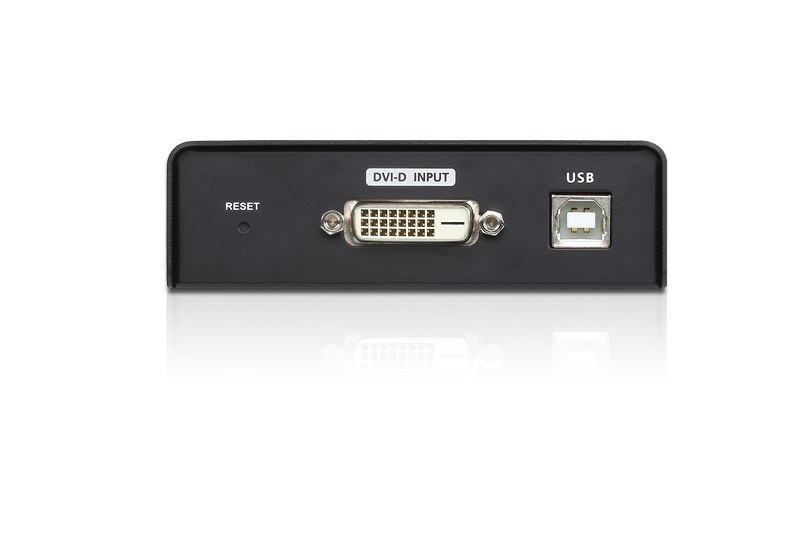

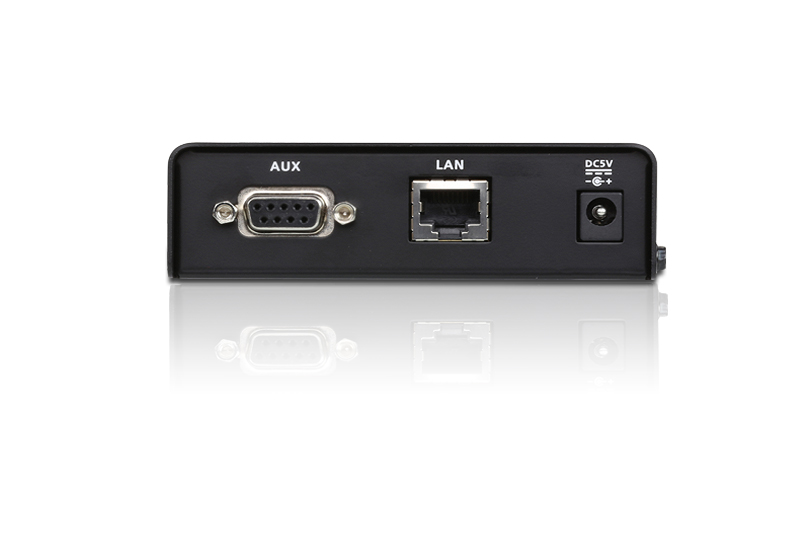

| KVM Ports | 1 x USB Type B Female (White) 1 x DVI-D Female (White) 1 x DB-9 Female (Black) |
| Power | 1 x DC Jack (Black) |
| LAN Ports | 1 x RJ-45 (Black) |
| Switches | |
| Reset | 1 x Semi-recessed Pushbutton |
| LEDs | |
| Link | 1 (Green / Orange) |
| Power | 1 (Blue) |
| Emulation | |
| Keyboard / Mouse | USB |
| Power Consumption | DC5V:3.35W:15BTU |
| Video Resolution | Up to 1920 x 1200 @ 60Hz |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0–95% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.43 kg ( 0.95 lb ) |
| Dimensions (L x W x H) | 14.39 x 10.30 x 3.00 cm (5.67 x 4.06 x 1.18 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
