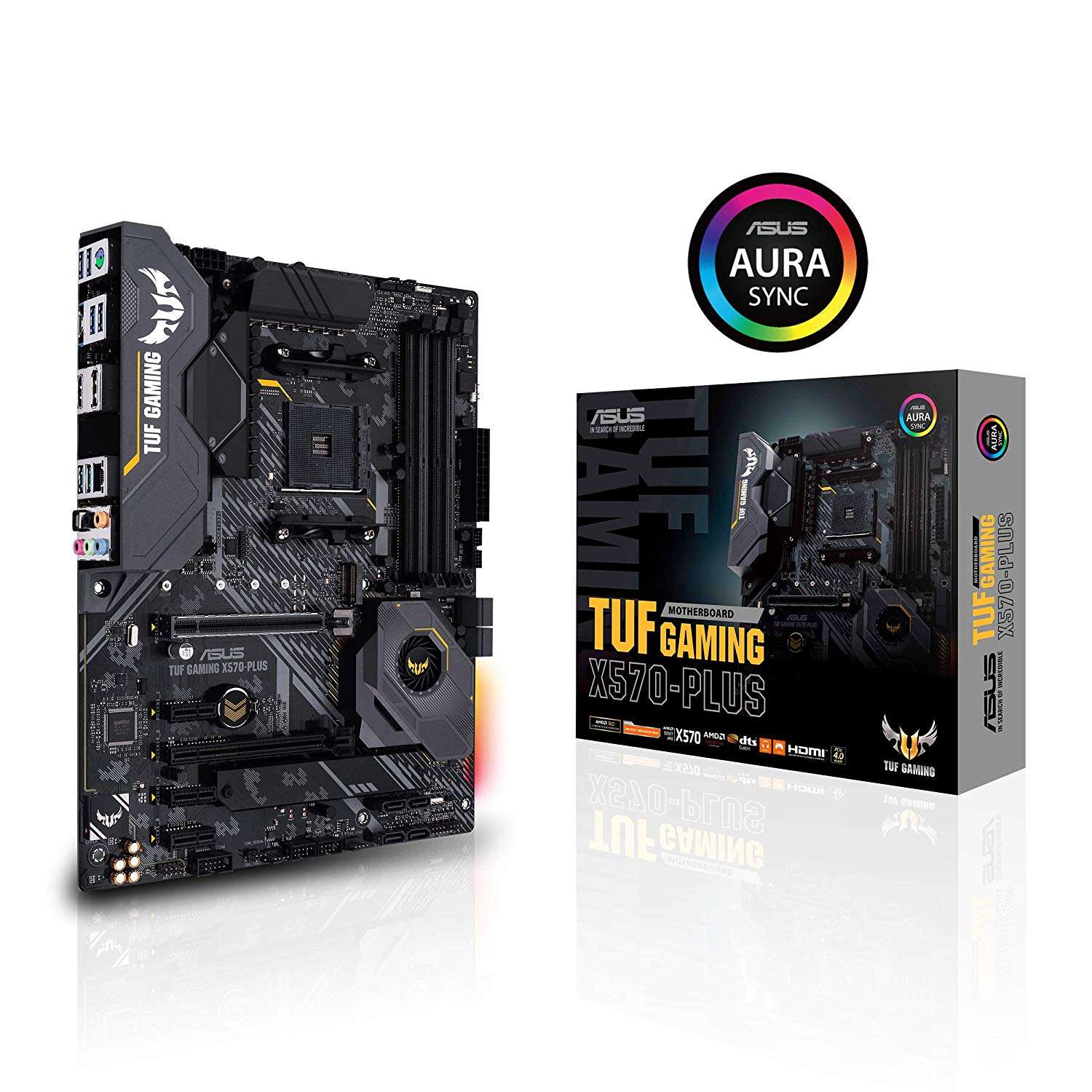

ASUS 華碩 TUF GAMING X570-PLUS ATX 主機板 (MB-BX57T+)

$0.00

SKU: MB-BX57T+ Categories: ,
Socket AM4 / X570 / 4*DDR4 MAX.128GB / 1*HDMI + 1*DP / 3*PCI-e x16 + 3*PCI-e x1 + 2*M.2 / 8*SATAIII / 4*USB2.0 + 6*USB3.2 GEN1 + 3*USB3.2 GEN2 / Realtek® L8200A / ATX / 3Years warranty

Description

AMD AM4 X570 ATX 電競主機板搭載 PCIe 4.0、雙 M.2、14 個 Dr.MOS 功率級、HDMI、DP、SATA 6Gb/s、USB 3.2 Gen 2 及 Aura Sync RGB 燈光效果
  • AMD AM4 插槽:支援第 2、3 代 AMD Ryzen™ 處理器
  • 增強型電源解決方案:12+2 Dr.MOS 功率級、6 層 PCB、ProCool 插槽、軍規級 TUF 組件及 Digi+ VRM 以發揮最高耐用性
  • 全方位散熱:主動式晶片組散熱器、VRM 散熱器、M.2 散熱器、混合式風扇接頭及 Fan Xpert 4
  • 新世代連線功能:雙 PCIe 4.0 M.2 及 USB 3.2 Gen 2 Type-A /Type-C
  • 電競連網功能:獨家 Realtek® L8200A Gigabit 乙太網路、TUF LANGuard 及 TurboLAN 技術
  • Realtek S1200A Codec:提供 108dB 訊噪比的立體聲輸出,以及 103dB 訊噪比的音訊輸入,打造純淨無暇的音質
  • Aura Sync RGB:可與眾多相容的電腦配備產品進行 LED 燈光效果同步,包括可定址 RGB 燈條。
  • TUF Gaming Alliance:ASUS 硬體生態系統可確保從組件到機殼的最佳相容性與協調的美感
產品規格 :
  • CPU
    AMD AM4 Socket AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics 處理器
  • 晶片組
    AMD X570
  • 記憶體
    4 x DIMM, 最高可支援到128GB, DDR4 MHz 無緩衝區 記憶體
    3rd Gen AMD Ryzen™ Processors
    雙通道 記憶體架構
    *有關記憶體合格廠商清單(QVL)的相關資訊,請參閱 www.asus.com 網站或本使用手冊。
    ECC Memory (ECC mode) support varies by CPU.
    2nd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 MHz 無緩衝區 Memory
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 MHz 無緩衝區 Memory
  • 顯示晶片
    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    支援多 VGA 輸出 : HDMI/DisplayPort 連接埠
    – 支援 DisplayPort 最大解析度 4096 x 2160 @ 60 Hz
    – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
  • 多GPU支援
    3rd and 2nd Gen AMD Ryzen™ Processors
    AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
    支援 AMD CrossFireX™ 技術
  • 擴充槽
    3rd Gen AMD Ryzen™ Processors
    1 x PCIe 4.0 x16 (x16 mode)
    2 x PCIe 4.0 x1
    2nd Gen AMD Ryzen™ Processors
    1 x PCIe 3.0 x16 (x16 mode)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    AMD X570 chipset
    1 x PCIe 4.0 x16 (max at x4 mode)
  • 資料儲存應用
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™ Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    AMD X570 chipset :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    8 x SATA 6Gb/s埠
    支援Raid 0, 1, 10
  • 區域網路
    Realtek® L8200A
    ASUS Turbo LAN Utility
    TUF LANGuard
  • 音效
    Realtek® ALC S1200A 8 通道 高傳真音效 CODEC
    Audio Feature :
    – Exclusive DTS Custom for GAMING Headsets.
    – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    – Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
  • USB連接埠
    3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    4 x USB 3.2 Gen 1 連接埠 (4 位於背板, )
    AMD X570 chipset :
    3 x USB 3.2 Gen 2 連接埠 (3 位於背板, , 2 x Type-A+1 x USB Type-C™)
    AMD X570 chipset :
    2 x USB 3.2 Gen 1 連接埠 (2 位於主機板中)
    AMD X570 chipset :
    4 x USB 2.0 連接埠 (4 位於主機板中)
  • 獨特功能
    ASUS TUF PROTECTION
    – ASUS SafeSlot: Protect your graphics card Investment
    – ASUS ESD Guard: Enhanced ESD protection
    – ASUS Overvoltage Protection: World-class circuit-protecting power design
    – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    – ASUS DIGI+ VRM: Precision control for stable power
    – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    華碩獨家功能 :
    – AI Suite 3
    – Ai Charger
    華碩靜音散熱解決方案 :
    – Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
    – ASUS Fan Xpert 4
    華碩 EZ DIY :
    – 華碩 CrashFree BIOS 3
    – 華碩 EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    華碩 Q-Design :
    – 華碩 Q-LED (CPU, DRAM, VGA, Boot Device LED)
    – 華碩 Q-Slot
    – 華碩 Q-DIMM
    AURA :
    – Aura Lighting Control
    – Aura RGB Strip Headers
    – Addressable Gen 2 Header
    DIY Friendly Design
    – Procool
    – SafeSlot
    – Digi+ VRM
    – Highly Durable components
    – ESD Guards
  • 後面板輸出端子
    1 x PS/2 鍵盤/滑鼠連接埠
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) 連接埠
    1 x 光纖 S/PDIF 輸出
    5 x 音訊插孔
    4 x USB 3.2 Gen 1 (up to 5Gbps) ports
    3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C™)

  • 內建 I/O 連接孔
    2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
    8 x SATA 6Gb/s 接頭
    1 x CPU 風扇接頭
    3 x 機殼風扇接頭
    1 x 24-pin EATX 電源接頭
    1 x 8-pin ATX 12V 電源接頭
    2 x Aura RGB Strip Header(s)
    1 x 4-pin ATX 12V 電源接頭
    1 x Addressable Gen 2 header(s)
    1 x 前面板音訊接頭 (AAFP)
    1 x 系統面板
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
    1 x SPI TPM header
    1 x Clear CMOS 跳線
    1 x CPU OPT Fan connector(s)
    1 x AIO_PUMP connector
    1 x COM port header
    1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
  • 配件
    使用者手冊
    I/O 擋板
    2 x Serial ATA 6.0Gb/s 纜線
    1 x TUF Certification 卡
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x TUF GAMING Sticker
  • BIOS
    256Mb 快閃記憶體 ROM、UEFI AMI BIOS、PnP、SM BIOS 3.2、ACPI 6.2、多重語言 BIOS, ASUS EZ Flash 3、CrashFree BIOS 3、F6 Qfan 控制、F3 我的最愛、F4 AURA 開/關、最後修改記錄、F9 搜尋、F12 PrintScreen 及 ASUS DRAM SPD (Serial Presence Detect) 記憶體資訊
  • 管理能力
    WOL by PME, PXE
  • 作業系統
    Windows® 10 64-bit
  • 主機板尺寸
    ATX 主機板尺寸
    12.0 吋 x 9.6 吋 ( 30.5 公分 x 24.4 公分 )
