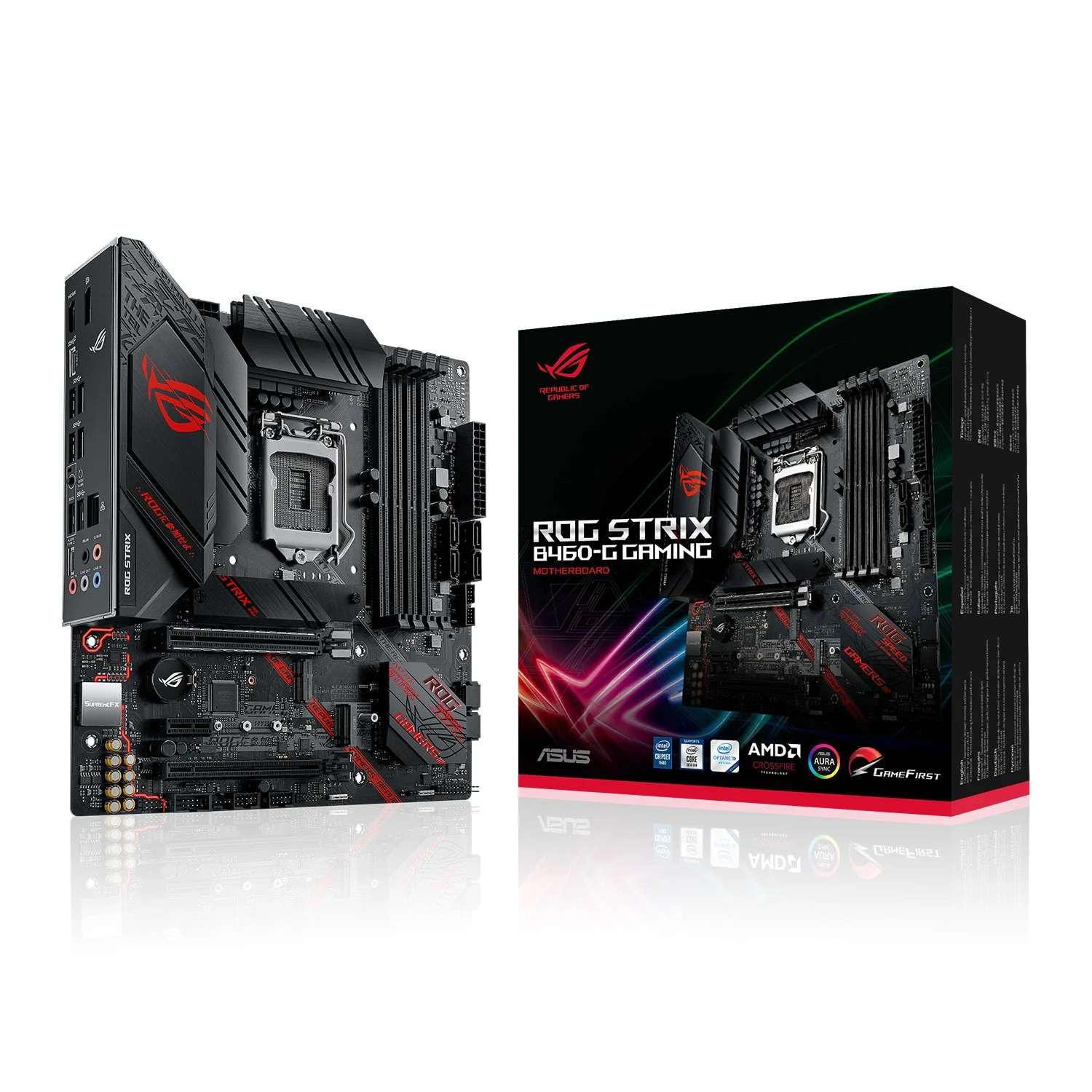

ASUS 華碩 ROG STRIX B460-G GAMING Micro-ATX 主機板 (MB-AB46SG)

$0.00

SKU: MB-AB46SG Categories: ,
Socket 1200 / B460 / 4*DDR4 MAX.128GB / CrossFireX / 1*HDMI + 1*DP / 2*PCI-e 3.0 x16 + 1*PCI-e x1 + 2*M.2 / 6*SATAIII / 5*USB2.0(4A1C) + 8*USB3.2 Gen1 + 1*USB3.2 Gen2 / ROG SupremeFX S1220A / Intel®I219V / mATX / 3Years warranty



Description

  • CPU

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  • Chipset

Intel® B460

  • Memory

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  • Graphic

Integrated Graphics Processor
1 x DisplayPort 1.4 **
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

  • Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

  • Expansion Slots

Intel® 10th Gen Processors
1 x PCIe 3.0 x16
Intel® B460 Chipset
1 x PCIe 3.0 x16 (x4 mode) *1
1 x PCIe 3.0 x1

  • Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

  • LAN

Intel® I219-V 1Gb Ethernet
ASUS LANGuard

  • Wireless Data Network

M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.

  • Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/192kHz playback
Audio Feature :
– SupremeFX Shielding™ Technology
– Rear audio USB Type-C® port
– Premium Japanese audio capacitors
– Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

  • USB Ports

Rear USB Port ( Total 8 )
1 x USB 3.2 Gen 2×2 port(s)(1 x USB Type-C®)
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
1 x USB 2.0 port(s)(1 x USB Type-C®)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

  • Software Features

[ROG Exclusive Software]
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software

[ASUS Exclusive Software]
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility:
-TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
– EZ update
AI Charger
WinRAR

[UEFI BIOS]
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey

  • ASUS Special Features

ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot

ASUS Thermal Solution
– Aluminum M.2 heatsink

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS header
– Pre-mounted I/O shield
– SafeSlot

AURA Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)

Onboard red LED lighting accent
Rear audio USB Type-C® connector

  • Back I/O Ports

1 x Intel® I219-V 1Gb Ethernet
1 x DisplayPort
1 x HDMI
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
6 x USB 3.2 Gen 1
1 x USB 2.0 (1 for audio USB Type-C®)
5 x Audio jack(s)
1 x USB BIOS FlashBack™ Button(s)

  • Internal I/O Ports

1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Addressable RGB header
1 x AAFP connector
1 x Aura RGB Strip Headers
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3
1 x M.2 with E key for Wi-Fi module
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector

  • Accessories

User’s manual
2 x SATA 6Gb/s cable(s)
1 x pack of cable tie
1 x Supporting DVD
1 x ROG Strix stickers
1 x Extension cable for Addressable LED
1 x ROG Thank you card
1 x M.2 SSD screw package(s)
1 xM.2 Key E screw package(s)
1 x M.2 Rubber Package(s)
1 x ROG audio USB Type-C® cable

  • BIOS

128 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

WOL by PME, PXE

  • Form Factor

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
