QSW-M408-2C

$0.00

SKU: QSW-M408-2C Categories: , Tags: ,

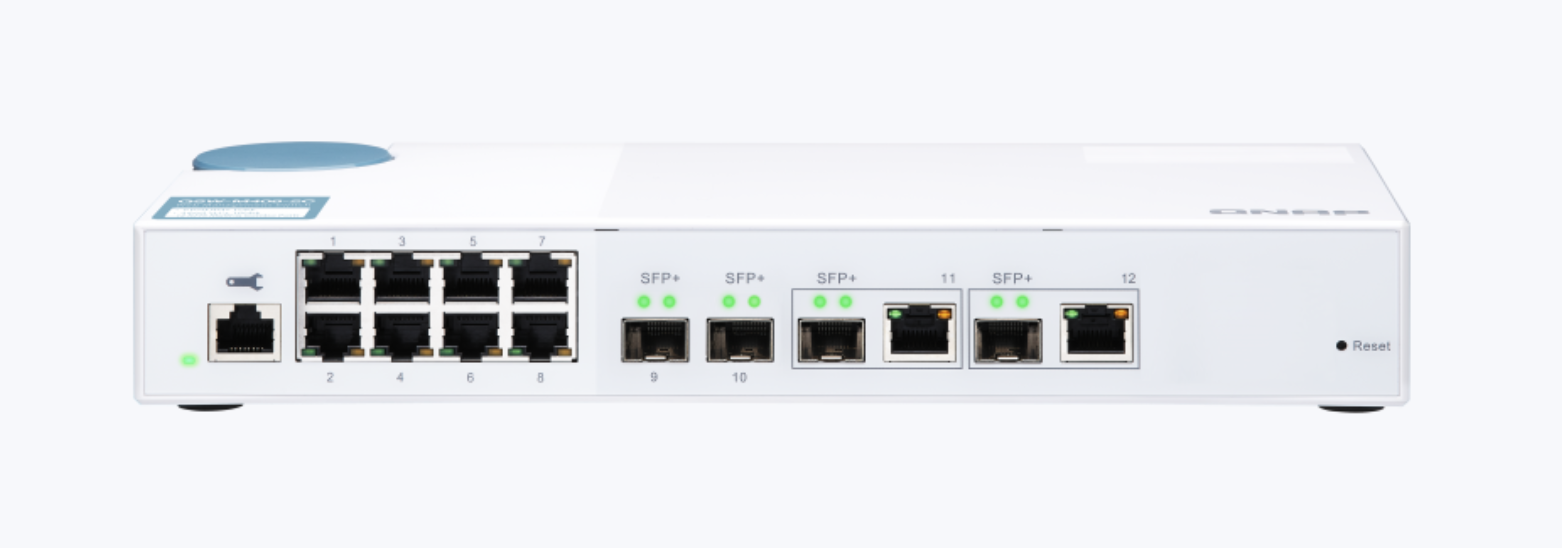

QNAP QSW-M408-2C
4 Ports 10GbE + 8 Ports 1GbE Layer 2 Managed Switch
Switching Capacity: 96Gbps | Management Type: Web Managed
1GbE LAN Ports: 8 x RJ45 Ports | 10GbE LAN Ports: 2 x 10GbE SFP+ Ports + 2 x 10GbE SFP+/RJ45 Combo Ports
10GbE RJ45 Ports support 10GbE/5GbE/2.5GbE/1GbE/100MbE | 10GbE SFP+ Ports support 10GbE/1GbE
Support Rate Limiting, IGMP Snooping, IP/MAC ACL, QoS, Port Mirroring, Trunking/LACP, VLAN, LLDP, WOL, Jumbo frame, etc.
Support IEEE 802.3u/ab/bz/an/ae/z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3p, IEEE 802.3az, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1AB
2 Years Carry-In Warranty (Optional: Upgrade to Onsite Warranty)

Description

Management Type Web Managed
Number of Ports 12
10GbE SFP+ 2

10G/1G
10GbE SFP+/RJ45 Combo Ports 2

Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
1GbE (RJ45) 8
Power Supply Description Adapter
Max. Power Consumption 22.04 W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 16K
Total Non-Blocking Throughput 48Gbps
Switching Capacity 96Gbps
Management Interface Web
Console RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan PWM double ball bearing fan x 1
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status
Buttons Reset button
Dimensions (HxWxD) 42.5 × 290 × 127 mm
Weight (Net) 1.15 kg
Weight (Gross) 1.57 kg
Operating Temperature 0°C to 40°C (32°F to 104°F)
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI, CCC
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years
