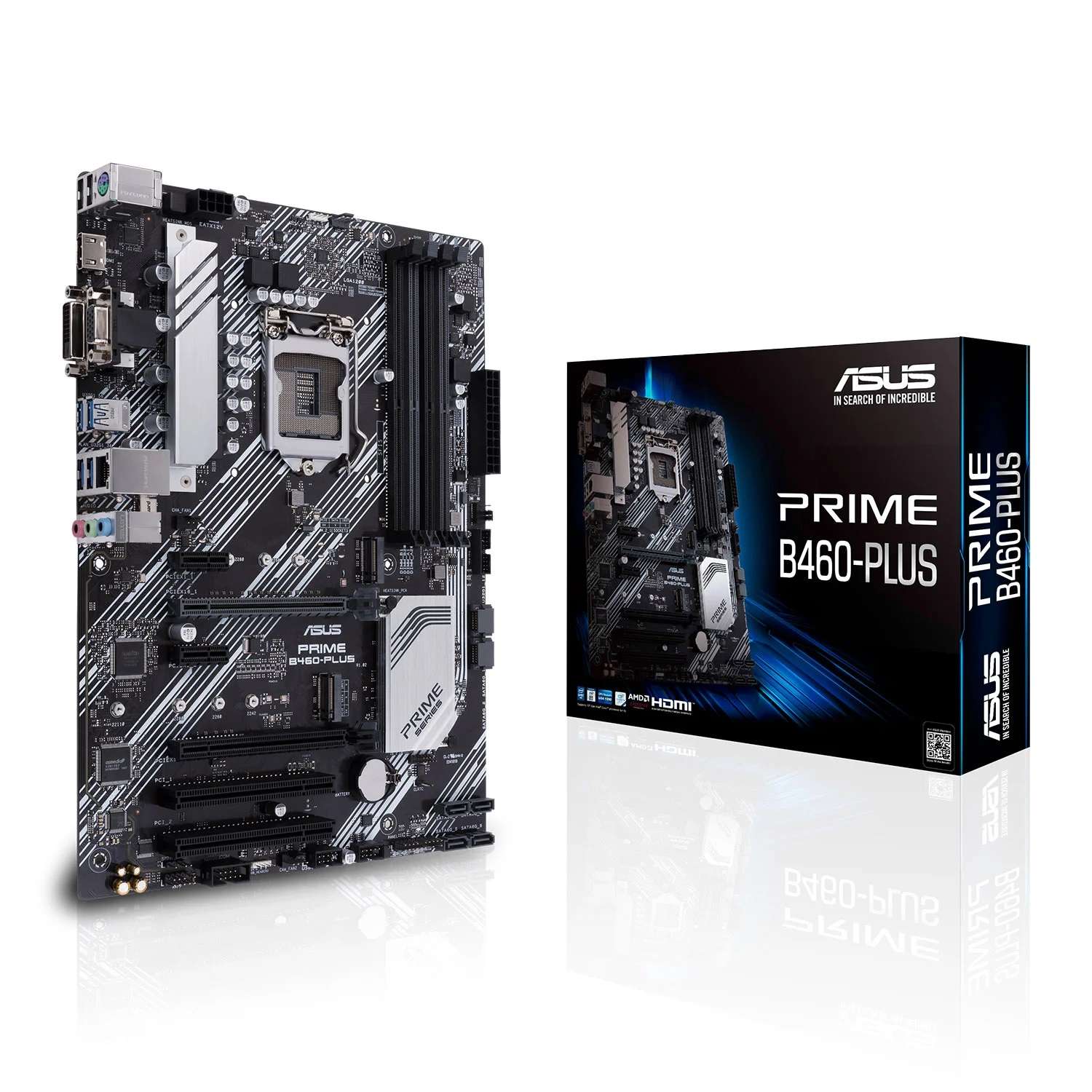

ASUS 華碩 PRIME B460-PLUS ATX 主機板 (MB-AB46P+)

$0.00

SKU: MB-AB46P+ Categories: ,
Socket 1200 / B460 / 4*DDR4 MAX.128GB / CrossFireX / 1*D-Sub + 1*DVI + 1*HDMI / 2*PCI-e 3.0 x16 + 2*PCI-e x1 + 2*PCI + 2*M.2 / 6*SATAIII / 6*USB2.0 + 6*USB3.2 Gen1 / Realtek®ALC887 / Realtek®RTL8111H / ATX / 3Years warranty

Description

  • CPU

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  • Chipset

Intel® B460

  • Memory

Intel® B460 Chipset
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  • Graphic

Integrated Graphics Processor
1 x D-Sub
1 x HDMI 1.4b
1 x DVI-D 1.4
*Graphics specifications may vary between CPU types.

  • Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

  • Expansion Slots

Intel® 10th Gen Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® B460 Chipset
1 x PCIe 3.0/2.0 x16 (x4 mode)
2 x PCIe 3.0/2.0 x1
2 x PCI

  • Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready

  • LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard

  • Audio

Realtek ALC887 7.1-Channel High Definition Audio CODEC *
– Supports : Jack-detection, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

  • USB Ports

Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
4 x USB 2.0 port(s)

  • Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
– EZ update
AI Charger
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

  • ASUS Special Features

ASUS 5X PROTECTION III
– ASUS DIGI+ VRM
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS Safeslot core
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-Slot
ASUS Lighting Control
– Standard RGB headers

  • Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)

  • Internal I/O Ports

1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AAFP connector
2 x Lighting Control RGB Strip Header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header

  • Accessories

User’s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

  • BIOS

128 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

WOL by PME, PXE

  • Operating System

Windows® 10 64-bit

  • Form Factor

ATX Form Factor
12 inch x 9.0 inch ( 30.5 cm x 22.86 cm )
