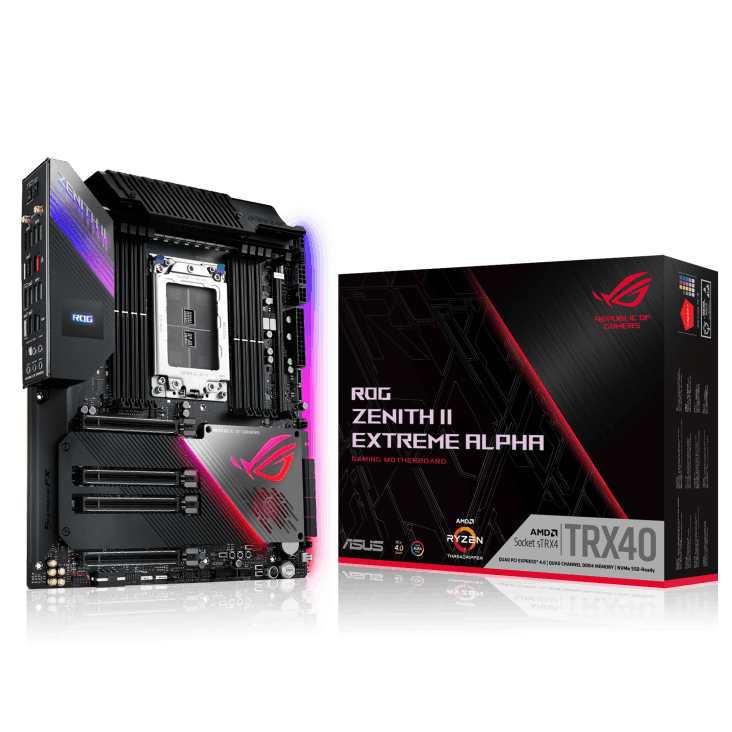

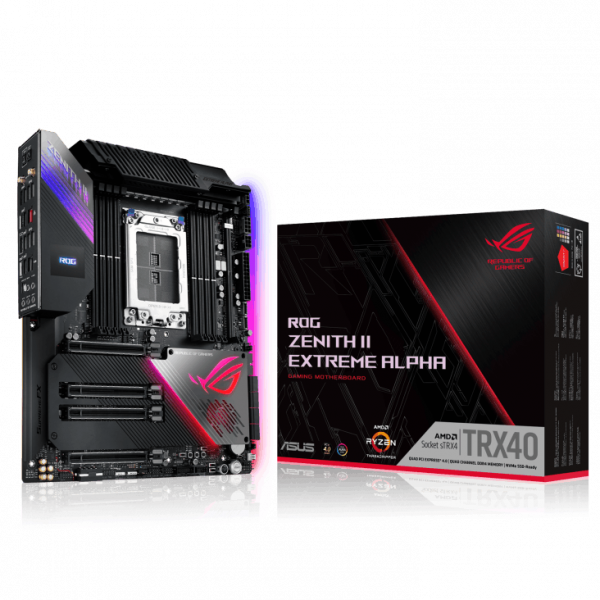

ASUS 主機板 ROG Zenith II Extreme Alpha, AMD®TRX40, TRX4, EATX (MB-BTX4ZEA)

$0.00

SKU: MB-BTX4ZEA Categories: ,
Socket TR4 / TRX40 / 8*DDR4 MAX.256GB / 3-Way SLI + CrossFireX / 4*PCI-e x16 + 5*M.2 / 8*SATAIII / 3*USB2.0 + 8*USB3.1 + 10*USB3.2 / Intel LAN + Aquantia 10G LAN + AX200 + BT5.0 / EATX / 3Years warranty

Description

AMD TRX40 E-ATX MOTHERBOARD STRX4 FOR 3RD GEN RYZEN THREADRIPPER, WITH 16 POWER STAGES, PCIE 4.0, WI-FI 6 (802.11AX), 10 GBPS ETHERNET, USB3.2 GEN2X2, DUAL USB 3.2 FRONT PANEL CONNECTOR, FIVE M.2, SATA AND AURA SYNC RGB

  • Ready for AMD 3rd Gen Ryzen™ Threadripper™ Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI
  • Robust power delivery: Optimized power solution with 16 Infineon TDA21490 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors
  • Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone
  • High-performance networking: Onboard Aquantia® 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology
  • Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers
  • Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9018Q2C for enthusiast-grade audio performance, featuring Japanese capacitors
  • DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and FlexKey
  • CPU
    支持 AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
    * 有關支援的 CPU 型號資訊,請參閱www.asus.com 網站內容。
    Supports CPU up to 64 cores
  • 晶片組
    AMD TRX40
  • 系統記憶體
    AMD Ryzen™ Threadripper™ Processors
    8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
    Quad Channel Memory Architecture
    * 有關記憶體合格廠商清單(QVL)的相關資訊,請參閱 www.asus.com 網站或本使用手冊。
  • Multi-GPU Support
    Supports NVIDIA® 3-Way SLI® Technology
    支援 AMD 3-Way CrossFireX™ Technology
  • 擴充槽
    3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
    4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
  • 儲存裝置
    3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
    1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1
    3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
    1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2
    Support Raid 0, 1, 10
    AMD TRX40 chipset :
    4 x SATA 6Gb/s port(s),
    ASMedia® SATA 6Gb/s controller :
    4 x SATA 6Gb/s port(s),
  • LAN
    Intel® I211-AT, 1 x Gigabit 區域網路控制器
    Aquantia AQC-107 10G
    Anti-surge LANGuard
    ROG GameFirst V Technology
  • 無線資料網路
    Intel® Wi-Fi 6 AX200
    Wi-Fi 802.11 ax, Bluetooth® 5.0
    Supports dual band frequency 2.4/5 GHz
    Supports 2×2 MU-MIMO
    Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth
    Bluetooth® 5.0
  • 音效
    ROG SupremeFX 8通道 高傳真音效 CODEC
    – Impedance sense for front and rear headphone outputs
    – 支援 : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    – High quality 120 dB SNR stereo playback output 108 dB SNR recording input
    – ESS® ESS9018Q2C
    Audio Feature :
    – SupremeFX Shielding™ Technology
    – Sonic Studio III + Sonic Studio Virtual Mixer
    – DTS® Sound Unbound
    – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path.
    – Sonic Radar III
  • USB Ports
    3rd Gen AMD Ryzen™ Threadripper™ Processors :
    4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
    AMD TRX40 chipset :
    2 x USB 3.2 Gen 2 front panel connector port(s)
    AMD TRX40 chipset :
    3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C)
    AMD TRX40 chipset :
    3 x USB 2.0 port(s)
    ASMedia® USB 3.2 Gen 1 controller :
    8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)
    ASMedia® USB 3.2 Gen2x2 controller :
    1 x USB 3.2 Gen 2×2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)
  • 超頻功能
    Clear CMOS button
    ROG CPU-Z
    ROG Aura
    – Aura Lighting Control
    – Aura RGB Strip Headers
    Extreme Engine Digi+ :
    – Infineon TDA21472 Power Stage
    – 10K Black Metallic Capacitors
    ROG Extreme OC kit :
    – OptiMem III
    – ReTry button
    – Safe Boot button
    – Start button
    – Slow Mode
    – LN2 Mode
    – FlexKey Button
    ProbeIt
    UEFI BIOS features :
    – ROG SSD Secure Erase
    – Graphic Card Information Preview
    USB BIOS FlashBack™
    ROG Patented Pre-mounted I/O Shield
    ROG Exclusive Software
    – Mem Tweakit
    – RAMCache III
    – GameFirst V
    – Sonic Radar III
    – Sonic Studio III + Sonic Studio Virtual Mixer
    ROG DIMM.2 module with heatsink
    ROG Aluminum heatsink cover
  • 獨特功能
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
    Gamer’s Guardian:
    – DRAM Overcurrent Protection
    – 10K Black Metallic Capacitors
    – DIGI+ VRM
    – SafeSlot
    – ESD Guards on LAN, Audio,and USB ports
    華碩獨家功能 :
    – AI Suite 3
    – Ai Charger+
    – Pre-mounted I/O Shield
    – ASUS EZ Flash 3
    – ASUS C.P.R.(CPU Parameter Recall)
    – BIOS FlashBack™ Button
    – Clear CMOS Button
    LiveDash OLED 1.77 ”
    AURA :
    – Aura Lighting Control
    – Aura RGB Strip Headers
    – Addressable Gen 2 Header
    ASUS Q-Design :
    – ASUS Q-Code
    – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
    – ASUS Q-Slot
    – ASUS Q-DIMM
    – ASUS Q-Connector
    Digi+VRM
    MemOK! II
    Armoury Crate
    Infineon TDA21490 Power Stage
  • 背板 I/O 埠
    1 x LAN (RJ45) 連接埠
    1 x 光纖 S/PDIF 輸出
    1 x USB 3.2 Gen 2×2 (up to 20Gbps) ports (Type-C)
    4 x USB 3.2 Gen 1 blue
    5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C)
    1 x Clear CMOS button(s)
    1 x USB BIOS FlashBack™ Button(s)
    5 x LED-illuminated audio jacks
    1 x Aquantia AQC-107 10G LAN port
  • Internal I/O
    2 x USB 3.0 接頭支援額外的 4 USB 3.0 連接埠
    2 x USB 2.0 接頭支援額外的 3 USB 2.0 連接埠
    8 x SATA 6Gb/s 接頭
    1 x CPU 風扇接頭
    2 x 機殼風扇接頭
    1 x 24-pin EATX 電源接頭
    2 x Aura RGB Strip Header
    2 x Addressable Gen 2 header(s)
    1 x 4-pin EZ_PLUG 電源接頭
    1 x 前面板音訊接頭 (AAFP)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode)
    1 x TPM header
    1 x CPU OPT Fan connector(s)
    1 x H_AMP fan connector
    2 x W_PUMP+ connector
    1 x WB_SENSOR
    1 x 6-pin EATX 12 V Power connector
    2 x 8-pin EATX 12V Power connectors
    7 x ProbeIt Measurement Points
    1 x BIOS Switch button(s)
    1 x Node Connector(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    2 x USB 3.2 Gen 2 front panel connector
    1 x Speaker connector
    1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
    1 x RSVD Switch
    1 x Start button
    1 x FlexKey button
    1 x FS Mode switch
    1 x M.2_3 cold storage Switch
    1 x Chipset Fan Header
    1 x VRM_HS_FAN Header
  • 配件
    使用者手冊
    6 x Serial ATA 6.0Gb/s 纜線
    1 x ROG logo plate sticker
    1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
    1 x Fan Extension Card II power cable
    1 x Fan Extension Card II NODE connector cable
    1 x Fan Extension Card II screw package
    1 x ROG big sticker
    1 x Thermistor cable(s)
    1 x ROG coaster(s)
    2 x ROG weave SATA 6G cable
    1 x ROG Thank you card
    1 x ROG DIMM.2 with heatsink
    1 x M.2 Pad for ROG DIMM.2
    1 x ROG Multi-Bit screwdriver
    1 x Wi-Fi moving antenna
  • BIOS
    2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1
  • 管理能力
    WOL , PXE
  • 作業系統
    Windows® 10 64-bit
  • 主機板尺寸
    Extended ATX 主機板尺寸
    12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )
  • 備註
    * When the M.2_2 on board is operating in PCIe mode,PCIE x16_4 will running at x4 mode
    ** When the M.2_3 on board is operating in PCIe x4 mode, SATA6G_E1-E4 will be disabled
    *** Supports PCIE RAID configurations via onboard M.2 storages.
