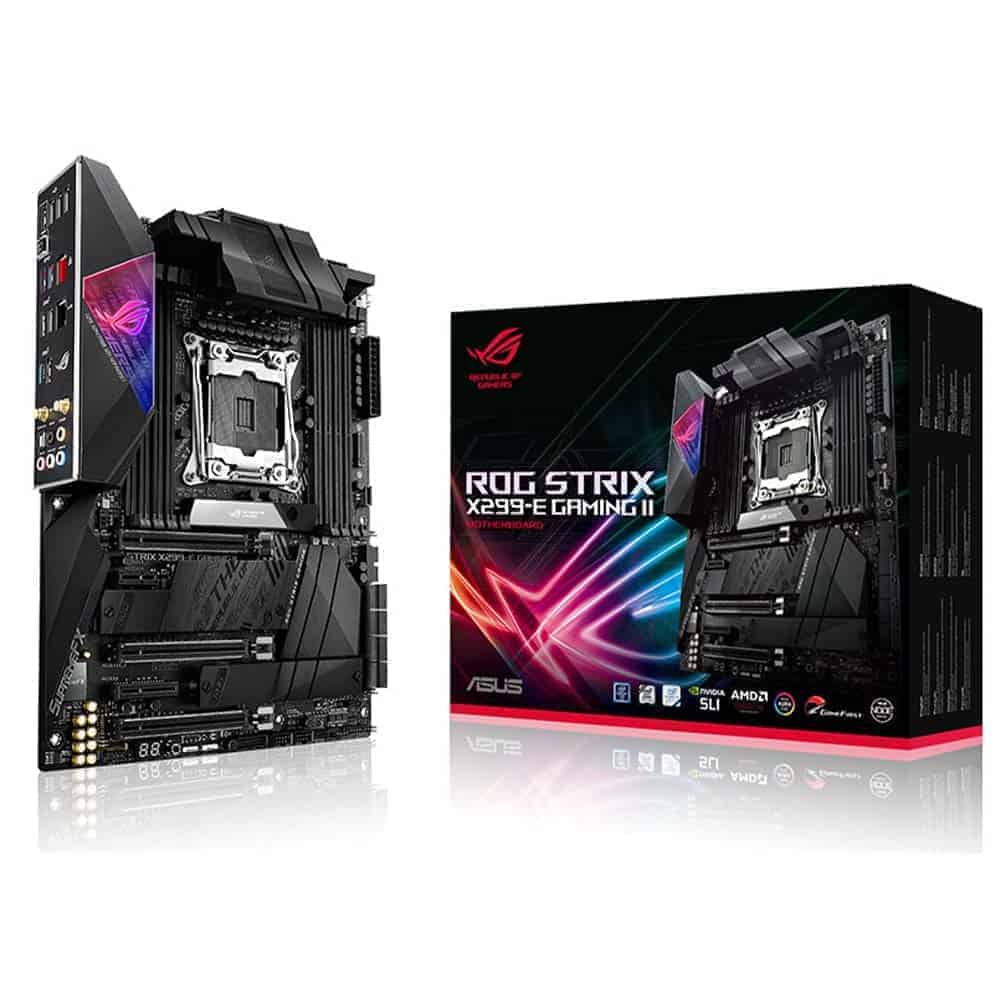

ASUS 主機板 ROG Strix X299-E Gaming II (MB-AX29SE2)

$0.00

SKU: MB-AX29SE2 Categories: ,
Socket 2066 / X299 / 8*DDR4 MAX.256GB / 3-Way SLI + CrossFireX / 3*PCI-e x16 + 1*PCI-e x4+ 1*PCI-e x1+ 3*M.2 / 8*SATAIII / 8*USB2.0 + 10*USB3.2 GEN1 / SupremeFX S1220A / Aquantia 2.5G Lan + INTEL Lan + WiFi AX200 + BT5.0 / ATX / 3Years warranty

Description

INTEL X299 ATX MOTHERBOARD LGA 2066 FOR INTEL CORE X-SERIES PROCESSORS, WITH 12 POWER STAGES, ON-BOARD WI-FI 6 (802.11AX), 2.5 GBPS LAN, USB 3.2 GEN 2, SATA, THREE M.2, OLED AND AURA SYNC RGB LIGHTING

  • Ready for the latest Intel® Core™ X-series processors to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2, Intel® VROC and Intel® Optane™ memory compatibility
  • Unmatched personalization: OLED and ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
  • Optimal Power Solution: 12 power stages with ProCool II power connector, high-quality chokes and durable capacitors to support multi-core processors
  • Comprehensive cooling: Active cooling VRM heatsink, stacked-fin heatsink, with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
  • Gaming connectivity: Three M.2, USB 3.2 Type-C port and Type-C front panel connector
  • Gaming networking: 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
  • AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
  • Gaming audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
  • Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience
  • CPU
    Intel® Socket 2066 Core™ X-Series Processors
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® X299
  • Memory
    (Intel® Core™ i9 10000 X-Series CPU)
    8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
    8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Quad Channel Memory Architecture
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    Supports NVIDIA® 3-Way SLI® Technology
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    48-Lane CPU-
    (Intel® Core™ i9 10000 X-Series CPU)
    3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8)
    44-Lane CPU-
    (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
    3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4)
    28-Lane CPU-
    (Intel® Core™ i7 7000 X-Series CPU)
    3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4)
    Intel® X299 Chipset
    1 x PCIe 3.0 x4
    1 x PCIe 3.0 x1 *1
  • Storage
    Intel® Core™ X-Series Processors Family :
    2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2
    Intel® Virtual RAID on CPU(VROC)
    Intel® X299 Chipset :
    1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode),
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready *3
  • LAN
    Intel® I219V
    Realtek® RTL8125-CG 2.5G LAN
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Wireless Data Network
    Intel® Wi-Fi 6 AX200
  • Bluetooth
    Bluetooth® 5.0
  • Audio
    SupremeFX 8-Channel High Definition Audio CODEC S1220A
    – Dual Headphone Amplifiers
    – Impedance sense for front and rear headphone outputs
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input
    – SupremeFX Shielding Technology
    – Supports up to 32-Bit/192kHz playback *4
    Audio Feature :
    – SupremeFX Shielding™ Technology
    – DTS® Sound Unbound
    – Optical S/PDIF out port(s) at back panel
    – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    – Sonic Radar III
    – Sonic Studio III + Sonic Studio Virtual Mixer
  • USB Ports
    ASMedia® USB 3.2 Gen 2 controller :
    1 x USB 3.2 Gen 2 front panel connector port(s)
    ASMedia® USB 3.2 Gen 2 controller :
    4 x USB 3.2 Gen 2 (up to 10Gbps) port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
    Intel® X299 Chipset :
    6 x USB 3.2 Gen 1 (up to 5Gbps) port(s) (2 at back panel, , 4 at mid-board)
    Intel® X299 Chipset :
    8 x USB 2.0 port(s) (4 at back panel, , 4 at mid-board)
  • ROG Exclusive Features
    ROG CPU-Z
    Overwolf
    USB BIOS FlashBack™
    ROG Exclusive Software
    – GameFirst V
    – Overwolf
    – Sonic Studio III + Sonic Studio Virtual Mixer
  • Special Features
    OC Design – ASUS PRO Clock II Technology
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
    AI Overclocking
    LiveDash OLED
    AURA :
    – Aura Lighting Control
    – Aura RGB Strip Headers
    – Addressable Gen 2 Header
    ASUS Exclusive Features :
    – USB BIOS FlashBack™
    – AI Suite 3
    – Ai Charger
    – Onboard Button : Power
    – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    – Armoury Crate
    – ASUS NODE: hardware control interface
    ASUS EZ DIY :
    – ASUS EZ Flash 3
    – ASUS USB BIOS FlashBack™
    – ASUS UEFI BIOS EZ Mode
    – Multi-language BIOS
    ASUS Q-Design :
    – ASUS Q-Code
    – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    – ASUS Q-Slot
    – ASUS Q-DIMM
    – ASUS Q-Connector
  • Back I/O Ports
    1 x LAN (RJ45) port(s)
    4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x Anti-surge 2.5G LAN (RJ45) port
    1 x Wi-Fi antenna port(s)
    1 x USB BIOS FlashBack™ Button(s)
    2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
    4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
  • Internal I/O Ports
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    8 x SATA 6Gb/s connector(s)
    1 x VROC_HW_Key
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x W_PUMP+ connector
    1 x 24-pin EATX Power connector(s)
    2 x 8-pin ATX 12V Power connector(s)
    1 x Front panel connector(s)
    1 x System panel(s) (Q-Connector)
    1 x Thermal sensor connector(s)
    1 x Power-on button(s)
    1 x Clear CMOS jumper(s)
    1 x Node Connector(s)
    1 x CPU_OV jumper
    1 x M.2 Fan Header
    2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports
  • Accessories
    User’s manual
    1 x Vertical M.2 bracket set
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG Strix stickers
    1 x Q-Connector
    1 x M.2 screw kit (long screw and mount)
    1 x Cable ties pack(s)
    1 x Wi-Fi Antenna(s)
    1 x ROG Door Hanger(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x Thermistor cable(s)
    1 x ROG Thank you card
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
  • Manageability
    WOL, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1 PCIe 3.0 x1 slot share with USB3.2 Gen2 front panel connector.
    *2 M.2_2 and M.2_3 support 44-Lane CPU (Intel® Core™ i7 9000 X-Series CPU and above).
    *3 The M.2 PCIe mode sources from Intel® X299 Chipset supports Intel® Optane Memory
    *4 Due to limitations in HDA bandwidth, 32-bit/192kHz is not supported for 8-Channel audio
