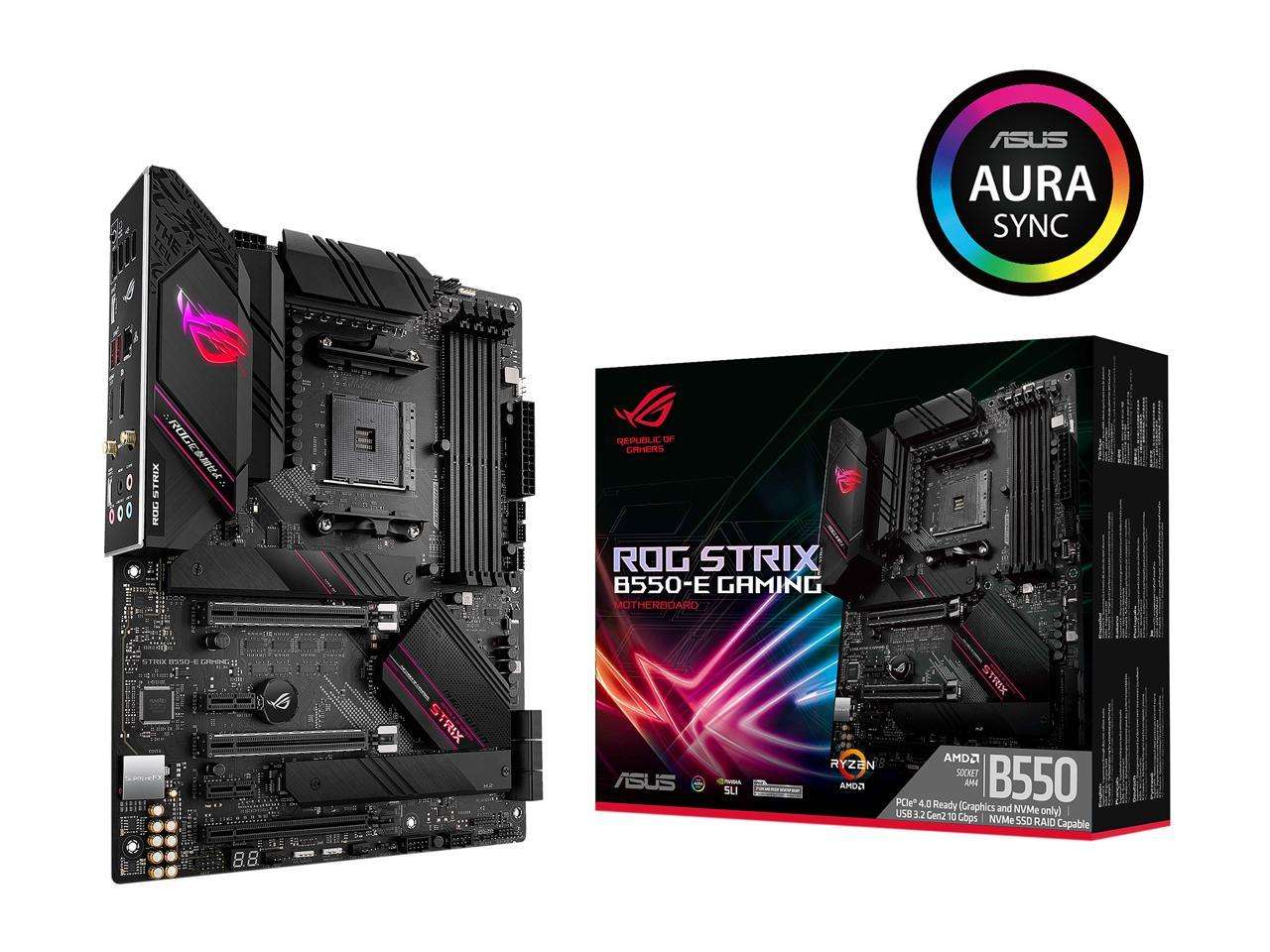

ASUS 主機板 ROG STRIX B550-E GAMING, AMD®B550, AM4, ATX (MB-BB55SE)

$0.00

SKU: MB-BB55SE Categories: ,
Socket AM4 / B550 / 4*DDR4 MAX.128GB / 1*HDMI + 1*DP / 3*PCI-e x16 + 2*PCI-e x1 + 2*M.2 / 6*SATAIII / 8*USB2.0 + 2*USB3.2 GEN1 + 4*USB3.2 GEN2(2A2C) / Intel®I225V + AX200 + Bluetooth® 5.1 / ATX / 3Years warranty



Description

  • CPU
    AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
    * Refer to www.asus.com for CPU support list
  • Chipset
    AMD B550
  • Memory
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    Next Generation AMD Ryzen PRO Processors
    4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    OptiMem II
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.2
    1 x HDMI 2.1(4K@60HZ)
    *Graphics specifications may vary between CPU types.
  • Multi-GPU Support
    Supports NVIDIA 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    3rd Gen AMD Ryzen™ Processors
    2 x PCIe 4.0 x16 (x16 or dual x8)
    AMD B550 Chipset
    1 x PCIe 3.0 x16 (x4 mode) *
    2 x PCIe 3.0 x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    AMD B550 Chipset :
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10
  • LAN
    Intel® I225-V 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless Data Network
    Intel® Wi-Fi 6 AX200
    2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Bluetooth
    Bluetooth v5.1*
    *BT 5.1 function will be ready in Windows 10 build 19041 or later.
  • Audio
    ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
    – Dual OP Amplifiers
    – Impedance sense for front and rear headphone outputs
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – Supports up to 32-Bit/192kHz playback *
    Audio Feature :
    – SupremeFX Shielding™ Technology
    – Rear audio USB Type-C® port
    – Audio Shielding
    – Premium Japanese audio capacitors
    – Audio Cover
  • USB Ports
    Rear USB Port ( Total 8 )
    3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C®)
    4 x USB 2.0 port(s)(4 x Type-A)
    1 x USB 2.0 port(s)(1 x audio USB Type-C® )
    Front USB Port ( Total 7 )
    2 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
    1 x USB 3.2 Gen 2 front panel connector port(s)
  • Software Features
    ROG Exclusive Software
    – RAMCache III
    – ROG CPU-Z
    – GameFirst VI
    – Sonic Studio III + Sonic Studio Virtual Mixer
    – Sonic Radar III
    – DTS® Sound Unbound
    – Overwolf
    – Anti-virus software
    ASUS Exclusive Software Features
    Armoury Crate
    – Aura Creator
    – Aura Sync
    Ai noise cancelling microphone
    AI Suite 3:
    – 5-way Optimization
    TPU
    EPU
    DIGI+ VRM
    Fan Xpert 4
    Turbo APP
    – EZ update
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    – ASUS CrashFree BIOS 3
    – ASUS EZ Flash 3
    – ASUS UEFI BIOS EZ Mode
    FlexKey
  • ASUS Special Features
    Aura Sync
    – Standard RGB header(s)
    – Addressable Gen 2 RGB header(s)
    ASUS Q-Design
    – ASUS Q-CODE
    – ASUS Q-DIMM
    – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)
    – ASUS Q-Slot
    ASUS Thermal Solution
    – Aluminum M.2 heatsink
    ASUS EZ DIY
    -BIOS Flashback™ button
    -BIOS FlashBack™ LED
    -Clear CMOS header
    -Procool
    -Pre-mounted I/O shield
    – SafeSlot
    Rear audio USB Type-C® connector
  • Back I/O Ports
    1 x Intel® I225-V 2.5Gb Ethernet
    1 x DisplayPort
    1 x HDMI
    3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®)
    5 x USB 2.0 (1 for audio USB Type-C®)
    5 x Audio jack(s)
    1 x BIOS FlashBack™ Button(s)
    ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x AAFP connector
    2 x Aura RGB Strip Header(s)
    2 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
    1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x System panel(s)
    1 x Thermal sensor connector(s)
    1 x Clear CMOS jumper(s)
    1 x Q-Code
  • Accessories
    User’s manual
    4 x SATA 6Gb/s cable(s)
    1 x Supporting DVD
    1 x ROG Strix stickers
    1 x Cable ties pack(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x ROG Thank you card
    1 x Wi-Fi moving antenna
    1 x M.2 SSD screw package(s)
    1 x M.2 Rubber Package(s)
    1 x ROG audio USB Type-C® cable
    1 ROG key chain
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2
    ** When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.
    ‘* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.
