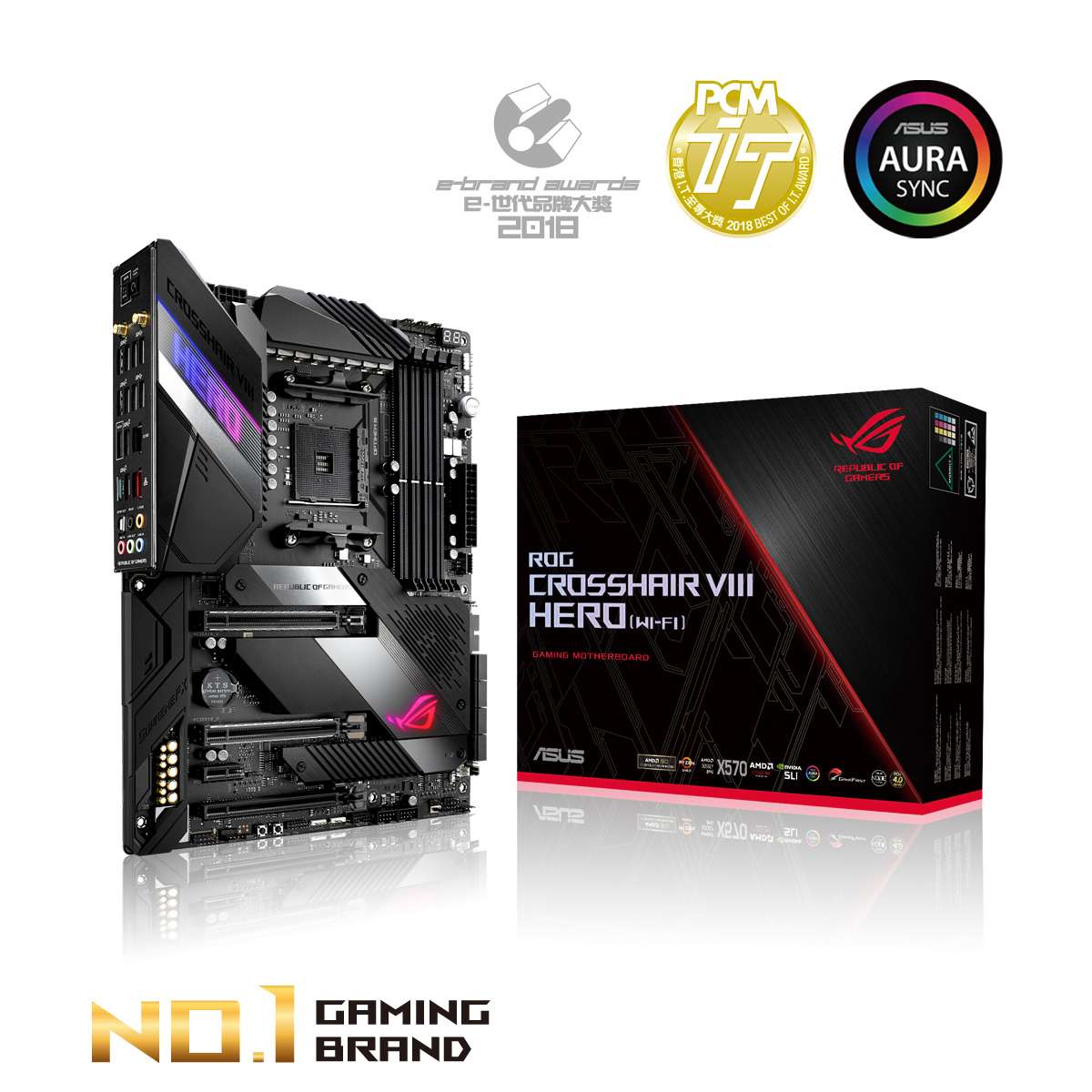

ASUS 主機板 ROG CROSSHAIR VIII HERO , AMD®X570, AM4, ATX (MB-BX57CH)

$0.00

SKU: MB-BX57CH Categories: ,
Socket AM4 / X570 / 4*DDR4 MAX.128GB / 3*PCI-e x16 + 1*PCI-e x1 + 2*M.2 / 8*SATAIII / 4*USB2.0 + 6*USB3.2 GEN1 + 5*USB3.2 GEN2 / Realtek® RTL8125-CG 2.5G LAN + Intel LAN / ATX / 3Years warranty

Description

AMD X570 ATX GAMING MOTHERBOARD WITH PCIE 4.0, 16 POWER STAGES , OPTIMEM III, 2.5 GBPS LAN, USB 3.2, SATA, M.2, AND AURA SYNC RGB LIGHTING

  • AMD AM4 socket: Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximise connectivity and speed.
  • Comprehensive thermal design: Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone.
  • Robust power delivery: Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors.
  • High-performance networking: On-board 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software.
  • 5-Way Optimisation: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
  • DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
  • Unmatched personalisation: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers.
  • Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.
產品規格 :
  • CPU
    AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    * Refer to www.asus.com for CPU support list
  • 晶片組
    AMD X570
  • 系統記憶體
    3rd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200 /3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    2nd Gen AMD Ryzen™ Processors
    4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture
    ECC Memory (ECC mode) support varies by CPU.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support
    3rd and 2nd Gen AMD Ryzen™ Processors
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD 3-Way CrossFireX™ Technology
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    Supports AMD 2-Way CrossFireX™ Technology
  • 擴充槽
    3rd Gen AMD Ryzen™ Processors
    2 x PCIe 4.0 x16 (x16 or dual x8)
    2nd Gen AMD Ryzen™ Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
    1 x PCIe 3.0 x16 (x8 mode)
    AMD X570 chipset
    1 x PCIe 4.0 x16
    1 x PCIe 4.0 x1
  • 儲存裝置
    3rd Gen AMD Ryzen™ Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
    2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    AMD X570 chipset :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    8 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • LAN
    Intel® I211-AT
    Realtek® RTL8125-CG 2.5G LAN
    ASUS LAN Guard
    ROG GameFirst Technology
  • 音效
    ROG SupremeFX 8-Channel High Definition Audio CODEC
    – Impedance sense for front and rear headphone outputs
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    – SupremeFX Shielding Technology
    – ESS® ES9023P
    – Supports up to 32-Bit/192kHz playback
    Audio Feature :
    – Sonic Studio III + Sonic Studio Virtual Mixer
    – DTS® Sound Unbound
    – Optical S/PDIF out port(s) at back panel
    – Sonic Radar III
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    3rd Gen AMD Ryzen™ Processors :
    4 x USB 3.2 Gen 2 port(s)
    2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
    4 x USB 3.2 Gen 1 port(s)
    AMD X570 chipset :
    1 x USB 3.2 Gen 2 front panel connector port(s)
    AMD X570 chipset :
    4 x USB 3.2 Gen 2 port(s)
    AMD X570 chipset :
    6 x USB 3.2 Gen 1 port(s)
    AMD X570 chipset :
    4 x USB 2.0 port(s)
  • 超頻功能
    Extreme Engine Digi+ :
    – IR3555 PoweIRstage®
    – MicroFine Alloy Chokes
    – 10K Black Metallic Capacitors
    ROG Extreme OC kit :
    – OptiMem III
    – Safe Boot button
    – Slow Mode
    – LN2 Mode
    Extreme Tweaker
    ROG Patented Pre-mounted I/O Shield
    ROG Exclusive Software
    – Sonic Studio III + Sonic Studio Virtual Mixer
    – RAMCache III
    – RAMDisk
    – CPU-Z
    – GameFirst V
    – Sonic Radar III
  • 獨特功能
    ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
    – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
    AURA :
    – Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    ASUS Exclusive Features :
    – USB BIOS FlashBack™
    – AI Suite 3
    – Ai Charger
    – ASUS CrashFree BIOS 3
    – Armoury Crate
    – ASUS NODE: hardware control interface
    – ASUS EZ Flash 3
    – ASUS C.P.R.(CPU Parameter Recall)
    – Clear CMOS Button
    – Reset Button
    – Start Button
    – ReTry button
    ASUS Q-Design :
    – ASUS Q-Code
    – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    – ASUS Q-Slot
    – ASUS Q-DIMM
    – ASUS Q-Connector
  • 背板 I/O 埠
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x Anti-surge 2.5G LAN (RJ45) port
    1 x USB BIOS FlashBack™ Button(s)
    5 x Gold-plated audio jacks
    4 x USB 3.2 Gen 1 (up to 5Gbps) ports
    8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
    Anti-surge LAN (RJ45) port
  • Internal I/O
    2 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
    1 x TPM connector(s)
    8 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x H_AMP fan connector
    1 x W_PUMP+ connector
    1 x 4-pin EATX 12 V Power connector
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Slow Mode switch(es)
    1 x Reset button(s)
    1 x Node Connector(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x System panel connector
    1 x T_Sensor Connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x Start button
    1 x Speaker connector
    1 x USB 3.2 Gen 2 (up to 10Gbps) connector
    1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
  • 配件
    User’s manual
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ROG big sticker
    1 x Q-Connector
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    1 x ROG coaster(s)
    1 x ROG Thank you card
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
  • 管理能力
    WOL, PXE
  • 作業系統
    Windows® 10 64-bit
  • 主機板尺寸
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
