QSW-M2116P-2T2S

$0.00

SKU: QSW-M2116P-2T2S Categories: , Tags: ,

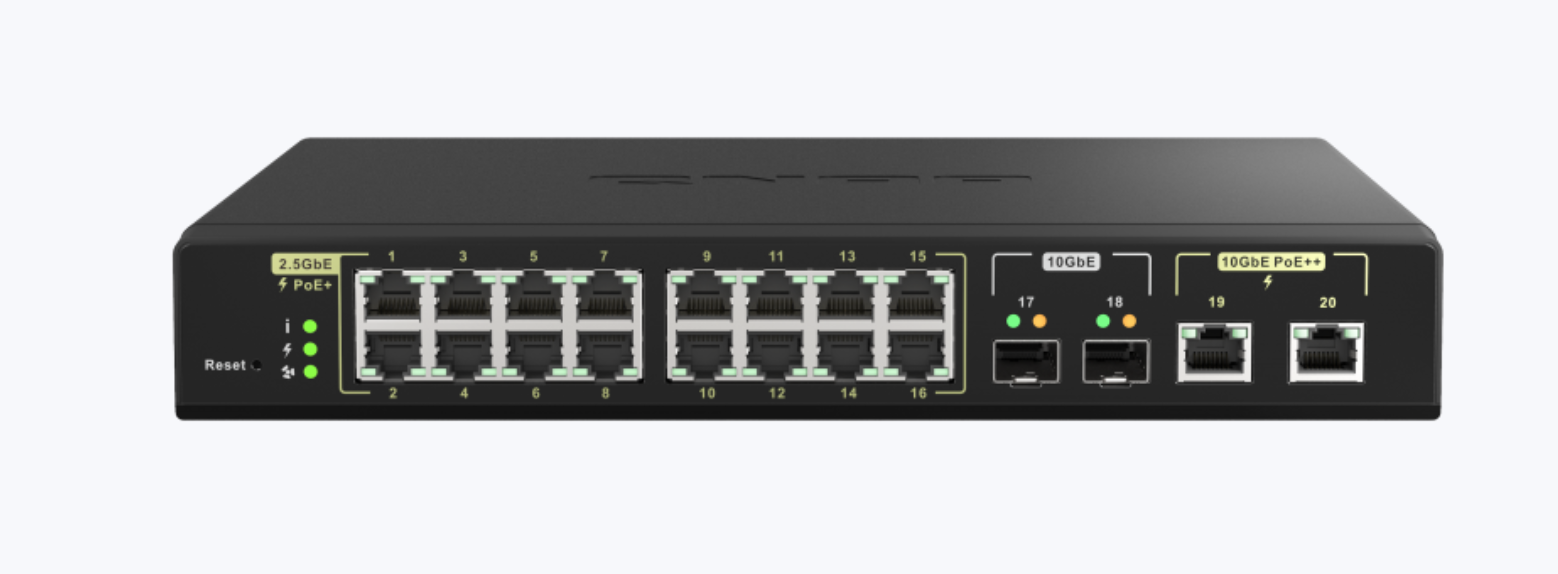

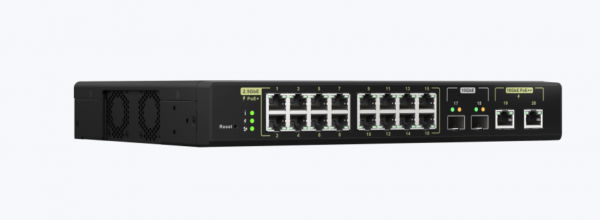

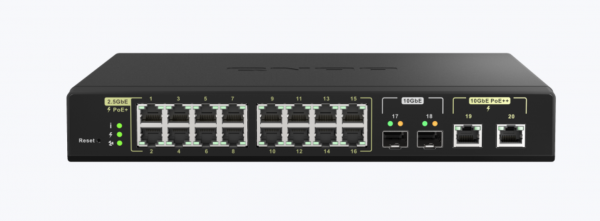

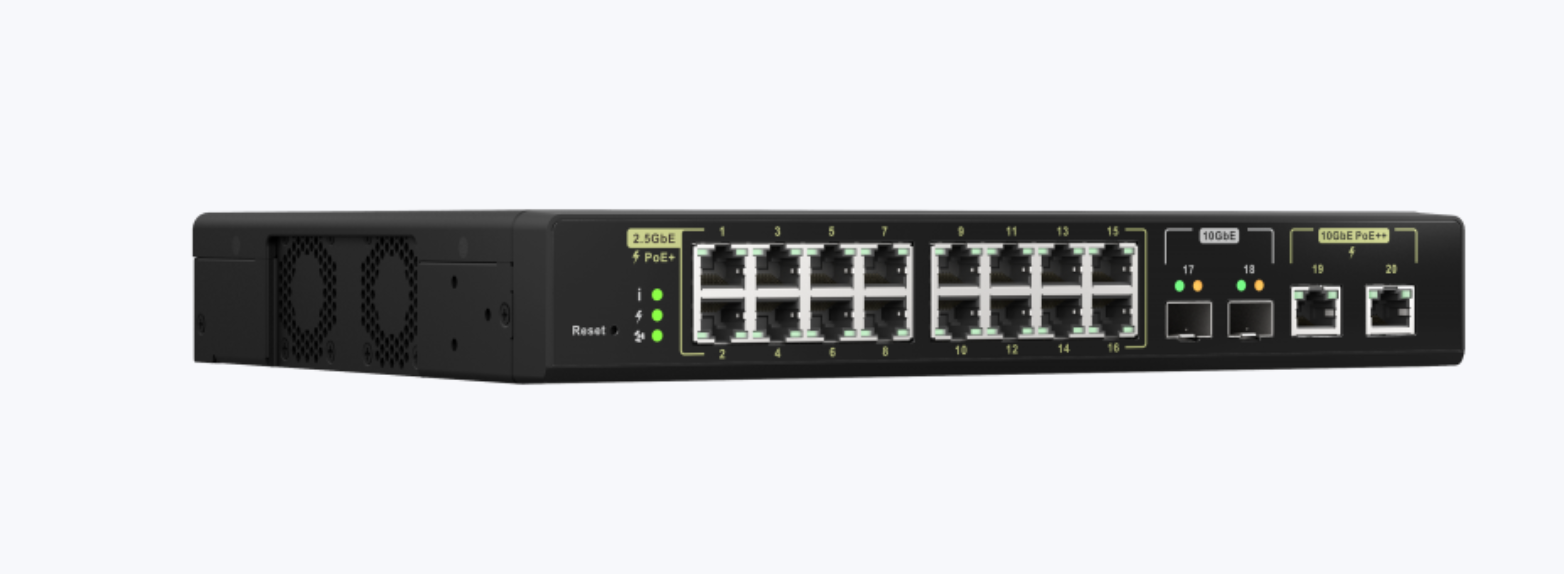

QNAP QSW-M2116P-2T2S
4 Ports 10GbE + 16 Ports 2.5GbE Layer 2 Managed PoE Switch
Switching Capacity: 160Gbps | Management Type: Web Managed
2.5GbE LAN Ports: 16 x RJ45 Ports (Support 2.5GbE/1GbE/100MbE), PoE PSE: 802.3af (15.4W), 802.3at (30W)
10GbE LAN Ports (SFP+): 2 x 10GbE SFP+ Ports (Support 10GbE/1GbE)
10GbE LAN Ports (RJ45): 2 x 10GbE RJ45 Ports (Support 10GbE/5GbE/2.5GbE/1GbE/100MbE), PoE PSE: 802.3af (15.4W), 802.3at (30W), 802.3bt (90W)
Total PoE Power Budget: 350W
Support Rate Limiting, IGMP Snooping, IP/MAC ACL, QoS, Port Mirroring, Trunking/LACP, VLAN, LLDP, Jumbo frame, etc.
Support IEEE 802.3u/ab/an/ae/z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1AB, IEEE 802.3af/at/bt
2 Years Carry-In Warranty (Optional: Upgrade to Onsite Warranty)

Description

Management Type Web Managed
Number of Ports 20
10GbE SFP+ 2
10GbE BASE-T (RJ45) 2
2.5GbE (RJ45) 16
Total PoE Ports 18
PoE PSE (802.3af, 15.4W) Port 1-16
PoE+ PSE (802.3at, 30W) Port 1-16
PoE++ PSE (802.3bt, 90W) Port 19-20
PoE Power Output Port 1-16 (30W), Port 19-20 (90W)
Total PoE Power Budget 280W
Power Supply Description Internal Power Supply Unit
Max. Power Consumption 350W
Input Power Type AC
Input Voltage Range 100-240VAC, 50/60 Hz
MAC Address Table 32K
Total Non-Blocking Throughput 80Gbps
Switching Capacity 160Gbps
Management Interface Web
Console RJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)
Fan PWM double ball bearing fan x 2
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10G BASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3af/at/bt Power-over-Ethernet (PoE)
Form Factor Rackmount
LED Indicators Per Port: Speed/Link/Activity
Per System: Status/PoE/Fan
Buttons Reset button
Dimensions (HxWxD) 43.5 x 285 x 234.8 mm
Weight (Net) 2.08 kg
Weight (Gross) 2.13 kg
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 5~95% Non-condensing
Certifications CE, FCC, VCCI, BSMI
Electromagnetic Compliance CLASS A
Jumbo Frames 9K
Warranty 2 Years
