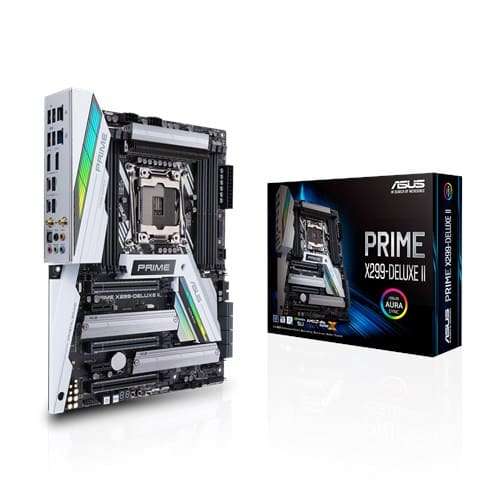

ASUS 主機板 PRIME X299-DELUXE II (MB-AX29PD2)

$0.00

SKU: MB-AX29PD2 Categories: ,
Socket 2066 / X299 / 8*DDR4 MAX.128GB / 3-Way SLI + CrossFireX / 3*PCI-e x16 + 2*PCI-e x1+ 3*M.2 / 8*SATAIII / 2*USB2.0 + 11*USB3.1 / Realtek® ALC S1220A / Aquantia 5G Lan + INTEL Lan + WiFi AC / ATX / 3Years warranty

Description

INTEL LGA 2066 ATX 主機板採用強化 VRM 和 M.2 散熱片設計,提供 DDR4 4266 (O.C.)MHZ、802.11AC WI-FI、三重 M.2、TYPE-C THUNDERBOLT 3 連接埠、INTEL VROC 支援
  • 5 向最佳化 : 單鍵即可完成全系統調校,針對 CPU 或 GPU 密集的工作提供最佳超頻和智慧散熱功能
  • 業界領先的散熱選項 : 透過 Fan Xpert 4 軟體或廣受好評的 ASUS UEFI,全面控制風扇和水泵
  • 最佳化散熱設計 : 強化鰭片設計 VRM 散熱片和 M.2 散熱片實現高效率散熱和最佳效能
  • 次世代連線能力 : Aquantia 5Gbps LAN、Intel Wireless-AC 9260、兩個搭載 DisplayPort 1.4 的 Thunderbolt 3 (Type-C)、三個 M.2 以及前置 USB 3.1 Gen 2 接頭
  • LiveDash : 2 吋可自訂內建顯示器顯示系統溫度、CPU 頻率、風扇速度或自訂圖形和動畫
  • 預裝 I/O 護板 : 能夠承受靜電放電,預先安裝以方便系統安裝
產品規格 :
  • CPU
    Intel® Socket 2066 Core™ X-Series Processors
    Optimized for Intel® Core™ X-Series 10000 Processor Family
    * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
    * Refer to www.asus.com for CPU support list
  • 晶片組
    Intel® X299
  • 系統記憶體
    (Intel® Core™ i9 10000 X-Series CPU)
    8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
    8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Thunderbolt
    2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
    Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
    * VGA resolution support depends on VGA cards’ resolution.
    Data transfer rate up to 40 Gbps
    Daisy-chain up to 12 Thunderbolt devices
    Up to 5V/3A, 15W charging support
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI® Technology
    Supports NVIDIA® 3-Way SLI® Technology
    Supports NVIDIA® 2-Way SLI® Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • 擴充槽
    44-Lane CPU-
    3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
    2 x PCIe 3.0/2.0 x1
    28-Lane CPU-
    2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
    1 x PCIe 3.0/2.0 x16 (x2 mode)
    2 x PCIe 3.0/2.0 x1
  • 儲存裝置
    Intel® X299 Chipset :
    1 x M.2 x4 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)*3
    1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    8 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Core™ X-series Processors (6-core above) :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology Enterprise supports
  • LAN
    Aquantia AQC111C 5G LAN
    Intel® I219V, 1 x Gigabit LAN
    ASUS Turbo LAN Utility
    ASUS LAN Guard
  • 無線資料網路
    Intel® Wireless-AC 9260
    Wi-Fi 802.11 a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
    Supports 2×2 MU-MIMO
    Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth
    Bluetooth® 5.0
  • 音效
    Realtek® S1220A 8-Channel High Definition Audio CODEC
    – Power pre-regulator reduces power input noise to ensure consistent performance
    – Impedance sense for front and rear headphone outputs
    – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Audio Feature :
    – DTS Headphone:X
    – Optical S/PDIF out port(s) at back panel
    – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    – Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  • USB Ports
    Intel® Thunderbolt™ 3 Controller :
    2 x USB 3.1 Gen 2 port(s) (USB Type-C™)
    ASMedia® USB 3.2 Gen 2 controller : *1
    1 x USB 3.1 Gen 2 front panel connector port(s)
    Intel® X299 Chipset :
    5 x USB 3.1 Gen 1 port(s) (1 at back panel, , 4 at mid-board)
    Intel® X299 Chipset :
    4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
    ASMedia® USB 3.2 Gen 1 Hub :
    3 x USB 3.1 Gen 1 port(s) (3 at back panel, )
  • 獨特功能
    OC Design – ASUS PRO Clock II Technology
    5-Way Optimization by Dual Intelligent Processors 5
    – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
    ASUS 5X Protection III :
    – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    – ASUS Overvoltage Protection: World-class circuit-protecting power design
    – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    – ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
    – ASUS ESD Guards – Enhanced ESD protection
    2 ” LiveDash
    AURA :
    – Aura RGB Strip Headers
    – Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    – Aura Addressable Strip Header(s)
    ASUS Exclusive Features :
    – USB BIOS FlashBack™
    – MemOK! II
    – AI Suite 3
    – Ai Charger
    – Onboard Button : Power/Reset
    – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    – Turbo LAN
    – Pre- mounted I/O shield
    – ASUS NODE : hardware control interface
    ASUS Quiet Thermal Solution :
    – Stylish Design Heat-pipe solution
    – Stylish Fanless Design with M.2 Heat-sink solution
    ASUS Q-Design :
    – ASUS Q-Code
    – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
    – ASUS Q-Slot
    – ASUS Q-DIMM
    – ASUS Q-Connector
    DIY Friendly Design
    – Procool
    – SafeSlot
    Q-Installer
    – Auto download driver and software. Friendly for first PC builder.
  • 背板 I/O 埠
    2 x Thunderbolt 3 ports TypeC™
    2 x DisplayPort IN ports for Thunderbolt™ 3
    1 x LAN (RJ45) port(s)
    4 x USB 3.2 Gen 1
    2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0
    1 x AQC-111C 5G LAN port
  • Internal I/O
    1 x Aura Addressable Strip Header(s)
    1 x AAFP connector
    2 x Aura RGB Strip Header
    2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    8 x SATA 6Gb/s connector(s)
    1 x M.2_FAN connector
    1 x VROC_HW_Key
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    1 x W_PUMP+ connector
    1 x AIO_PUMP connector
    1 x 24-pin EATX Power connector(s)
    2 x 8-pin EATX 12V Power connectors
    1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
    1 x MemOK! II switch(es)
    1 x Thermal sensor connector(s)
    1 x CPU OV
    1 x Power-on button(s)
    1 x Reset button(s)
    1 x Clear CMOS button(s)
    1 x Node Connector(s)
    1 x USB BIOS FlashBack™ button(s)
    1 x USB 3.2 Gen 2 front panel connector
    1 x Q-Code
  • 配件
    User’s manual
    1 x Vertical M.2 bracket set
    6 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
    1 x Fan Extension Card II power cable
    1 x Fan Extension Card II NODE connector cable
    1 x Fan Extension Card II screw package
    1 x Display Port cable
    1 x SLI HB BRIDGE(2-WAY-M)
    1 x Q-Connector
    1 x Extension cable for Addressable LED
    3 x Thermistor cable(s)
    1 x CPU Fan Holder
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information
  • 管理能力
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • 支援光碟
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • 作業系統
    Windows® 10 64-bit
  • 主機板尺寸
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
