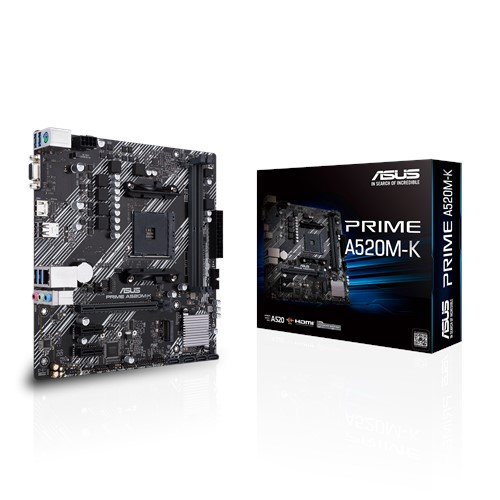

ASUS 主機板 PRIME A520M-K, AMD®A520, AM4, mATX (MB-BA52PMK)

$0.00

SKU: MB-BA52PMK Categories: ,
Socket AM4 / A520 / 2*DDR4 MAX.64GB / 1*D-Sub + 1*HDMI / 1*PCI-e x16 + 2*PCI-e x1 + 1*M.2 / 4*SATAIII / 6*USB2.0 + 6*USB3.2 Gen 1 / Realtek LAN / Realtek ALC887 / mATX / 3Years warranty

Description

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A

  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection
產品規格 :
  • 處理器

    AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors Processors *
    * Refer to www.asus.com for CPU support list
  • 晶片組

    AMD A520
  • 記憶體

    2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz 無緩衝區 記憶體 *
    雙通道 記憶體架構
    ECC Memory (ECC mode) support varies by CPU.
    * 有關記憶體合格廠商清單(QVL)的相關資訊,請參閱 www.asus.com 網站或本使用手冊。
    * The maximum memory frequency supported varies by processor.
  • 顯示晶片

    1 x D-Sub
    1 x HDMI 2.1(4K@60HZ)
  • 擴充槽

    3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
    1 x PCIe 3.0 x16 (x16 mode)
    AMD A520 Chipset
    2 x PCIe 3.0 x1
  • 資料儲存應用

    Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
    3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :
    1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
    AMD A520 Chipset :
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
  • 區域網路

    Realtek RTL8111H 1Gb 區域網路控制器
    ASUS LANGuard
  • 音效

    Realtek® ALC887 7.1 通道 高傳真音效 CODEC *
    – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    – Audio Shielding
    – Dedicated audio PCB layers
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB連接埠

    Rear USB Port ( Total 6 )
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
  • 獨特功能

    華碩獨家功能
    Armoury Crate
    AI Suite 3
    – Performance and Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert
    – EZ update
    華碩 CPU-Z
    AI Charger
    DAEMON Tools
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    華碩 EZ DIY
    – 華碩 CrashFree BIOS 3
    – 華碩 EZ Flash 3
    – 華碩 UEFI BIOS EZ Mode
  • 華碩特殊功能

    華碩 5X PROTECTION III
    – 華碩 DIGI+ VRM
    – 華碩 LANGuard
    – 華碩 Overvoltage Protection
    – 華碩 SafeSlot Core
    – 華碩 Stainless-Steel Back I/O
    華碩 Q-Design
    – 華碩 Q-DIMM
    – 華碩 Q-Slot
    華碩靜音散熱解決方案
    – Aluminum heatsink design
  • 後面板輸出端子

    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.2 Gen 1 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
  • 內建 I/O 連接孔

    1 x CPU 風扇接頭
    1 x 機殼風扇接頭
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x SPI TPM header
    4 x SATA 6Gb/s 接頭
    1 x S/PDIF 輸出接頭
    1 x 24-pin EATX 電源接頭
    1 x 8-pin EATX 12V 電源接頭
    1 x 前面板音訊接頭 (AAFP)
    1 x Clear CMOS 跳線
    1 x 系統面板
    1 x COM port header
    1 x Speaker 接頭
  • 配件

    使用者手冊
    I/O 擋板
    2 x SATA 6Gb/s 纜線
    1 x Supporting DVD
    1 x M.2 SSD screw package(s)
  • BIOS
    256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    mATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
