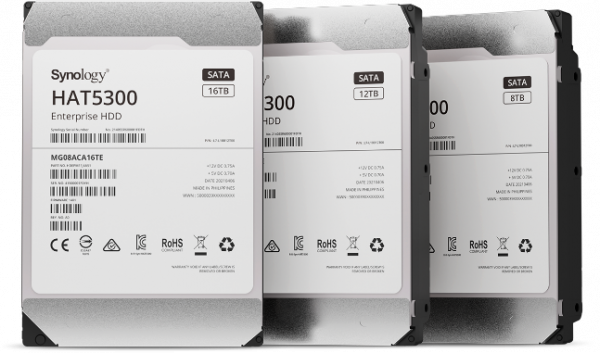

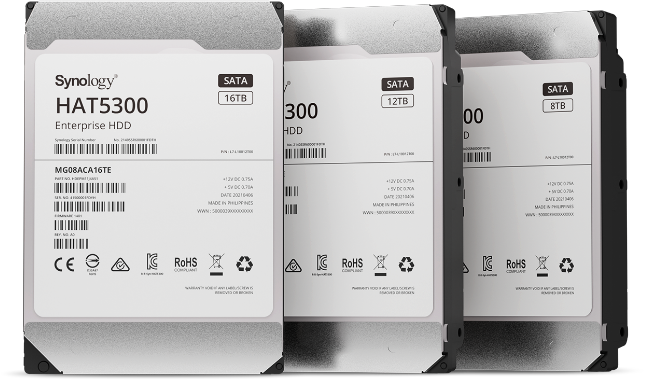

3.5” SATA HDD HAT5300-12T

$0.00

SKU: HD-HA5312T Categories: , Tags: ,
HAT5300 – 3.5″ SATA HDD
• Enterprise Reliability and Durability for demanding 24/7 environments, rated for 2.5 million hours MTTF and up to 550 TB per year workloads
• Persistent Write Cache Technology minimizes the chance of data corruption in the event of sudden power loss
• Better Together – firmware and DiskStation Manager (DSM) optimizations improve multi-client seq. read performance by up to 23%
• One-stop Update – Get automatic frmware updates together through DSM updates, reducing the need for additional maintenance sessions
• For Synology, by Synology – Stringent validation and up to 300,000 hours of tests
ensures maximum reliability in Synology systems

Supported models
HAT5300-8T & HAT5300T-12T:SA3600, SA3400, RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+, DVA3221, RS820RP+, RS820+, DS1520+, DS920+, DS720+, DS420+, DS220+, RS1619xs+, DS2419+, DS1819+, DVA3219, RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+, RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs

Description

Hardware Specifications

General

HAT5300

Capacity



HAT5300-8T: 8 TB

HAT5300-12T: 12 TB

HAT5300-16T: 16 TB

Form Factor



3.5″

Interface



SATA 6 Gb/s

Sector Size



512e

Performance

Rotational Speed



7,200 rpm

Interface Speed



6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s

Buffer Size



256 MiB

Maximum Sustained Data Transfer Speed (Typ.)



HAT5300-8T: 230 MiB/s

HAT5300-12T: 242 MiB/s

HAT5300-16T: 262 MiB/s

Reliability

Mean Time to Failure (MTTF)



2.5 million hours

Workload Rating



550 TB Transferred per Year

Warranty



5 Years

Notes



The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Power Consumption

Supply Voltage



12 V (± 10%) / 5 V (+10/-7%)

Active Idle (Typ.)



HAT5300-8T: 6.38 W

HAT5300-12T: 4.25 W

HAT5300-16T: 4.00 W

Random Read / Write (4KB Q1) (Typ.)



HAT5300-8T: 9.10 W

HAT5300-12T: 7.83 W

HAT5300-16T: 7.63 W

Notes



Power consumption may differ according to configurations and platforms.

Temperature

Operating



5°C to 60°C (41°F to 140°F)

Non-operating



-40°C to 70°C (-40°F to 158°F)

Shock

Operating



686 m/s2 {70 G} (2 ms duration)

Non-operating



2,450 m/s2 {250 G} (2 ms duration)

Vibration

Operating



7.35 m/s2 {0.75 G} (5 to 300Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz)

Non-operating



29.4 m/s2 {3.0 G} (5 to 500 Hz)

Altitude

Operating



-305 m to 3,048 m

Non-operating



-305 m to 12,192 m

Relative Humidity

Operating



5% to 90% R.H. (No condensation)

Non-operating



5% to 95% R.H. (No condensation)

Others

Size (Height x Width x Depth)



26.1 mm x 101.85 mm x 147 mm

Weight



HAT5300-8T: 770 g

HAT5300-12T: 720 g

HAT5300-16T: 720 g

Certification





  • CE
  • EAC
  • BSMI
  • RCM
  • KC
  • ICES
  • UKCA
  • TUV
  • UL
  • RoHS



Compatibility

Compatibility

Applied Models





Additional information

Weight 0.72 kg
Dimensions 2.61 × 10.185 × 14.7 cm
